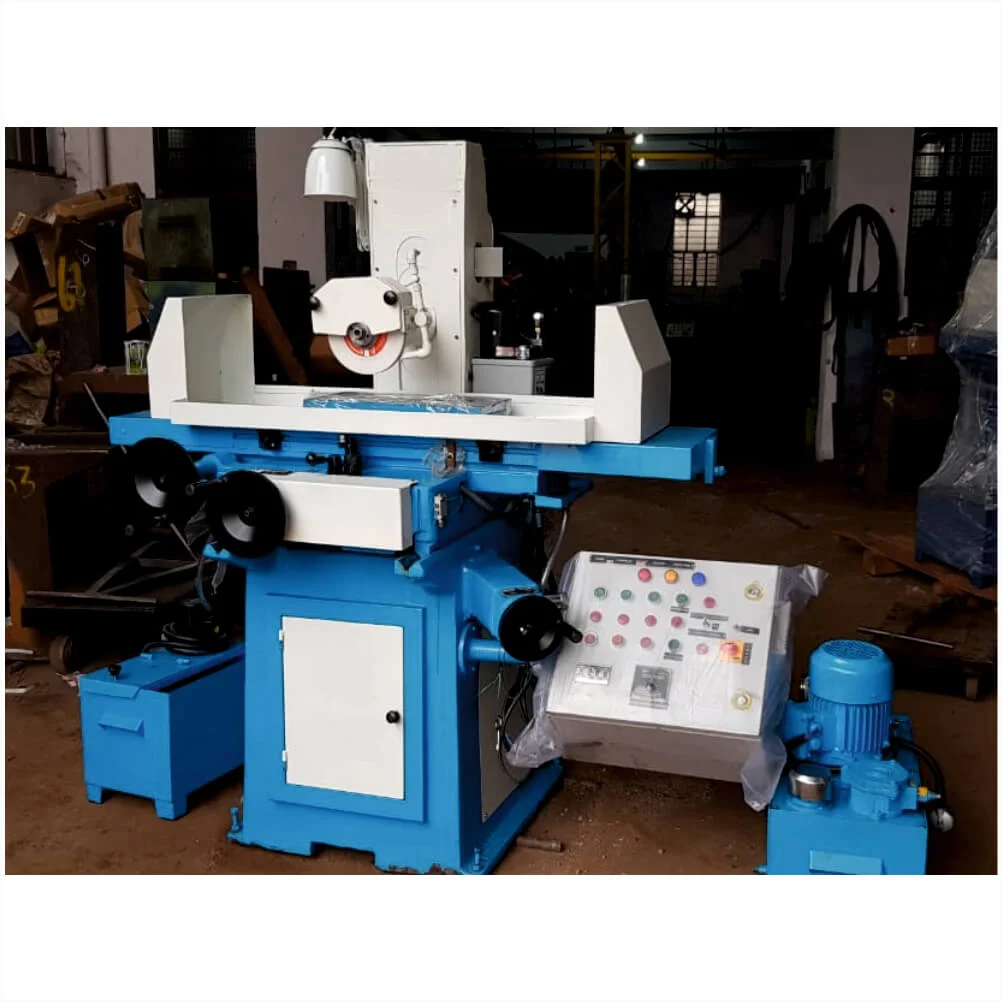

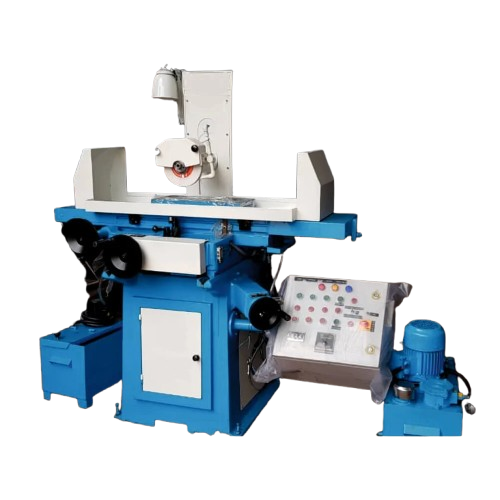

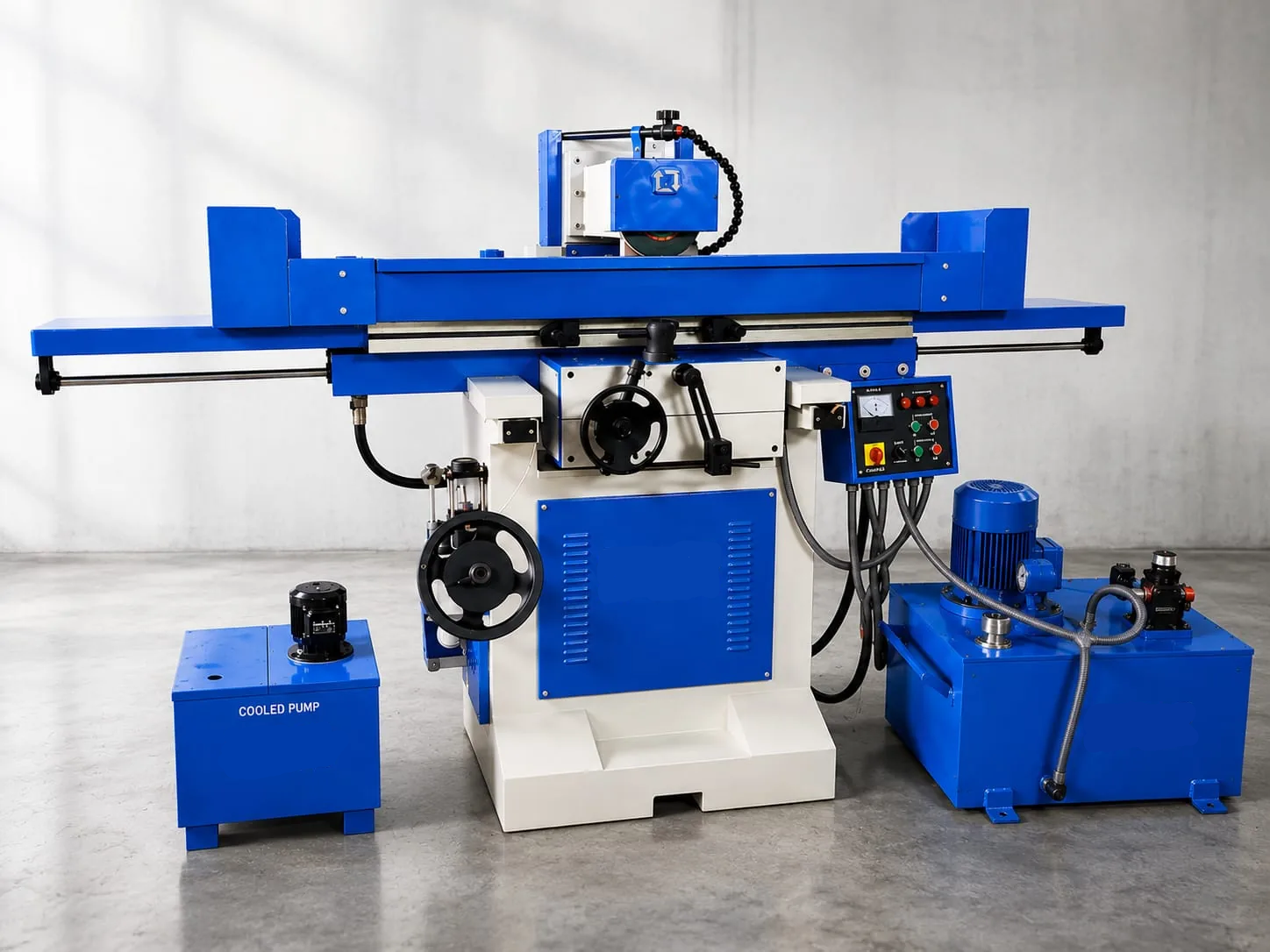

Precision ground table surface
for superior flatness.
Powerful grinding wheel motor
with built-in spindle.
Hydraulic table movement for
smooth longitudinal and cross feeds.
Technical Specifications
| Model | M7130 | M7132 | M7140 |
|---|---|---|---|
| Table width | 300 mm | 320 mm | 400 mm |
| Table length | 1000 mm | 1000 mm | 1000 mm |
| Max grinding length | 1000 mm | 1000 mm | 1000 mm |
| Max grinding height | 400 mm | 400 mm | 400 mm |
| Longitudinal table travel | 1100 mm | 1100 mm | 1100 mm |
| Table speed | 3-25 m/min | 3-25 m/min | 3-25 m/min |
| Cross feed of grinding head | 0.5-3 m/min | 0.5-3 m/min | 0.5-3 m/min |
| Vertical feed | Ball screw, manual with quick lift | Ball screw, manual with quick lift | Ball screw, manual with quick lift |
| Wheel size | Ø350 x 40 x Ø127 mm | Ø350 x 40 x Ø127 mm | Ø350 x 40 x Ø127 mm |
| Wheel spindle | Built-in motor | Built-in motor | Built-in motor |
| Wheel motor | 5.5 kW | 5.5 kW | 5.5 kW |
| Magnetic chuck | Electromagnetic | Electromagnetic | Electromagnetic |
| Machine weight | 3680 kg net | 3680 kg net | 4100 kg net |
*Specifications are subject to changed without prior notice.
Applications
- Surface grinding for achieving flatness and fine finish.
- Squaring of workpieces prior to machining operations.
- Tool and die making for precision surfaces.
- Ideal for precision engineering and tool rooms.
- Suitable for hardened steel, cast iron, and non-ferrous materials.
Features
- Precision ground table surface for superior flatness.
- Powerful grinding wheel motor with built-in spindle.
- Hydraulic table movement for smooth longitudinal and cross feeds.
- Electromagnetic chuck for secure workpiece holding.
- Adjustable wheel head for vertical feed control.
- Robust column and cross rail construction.
