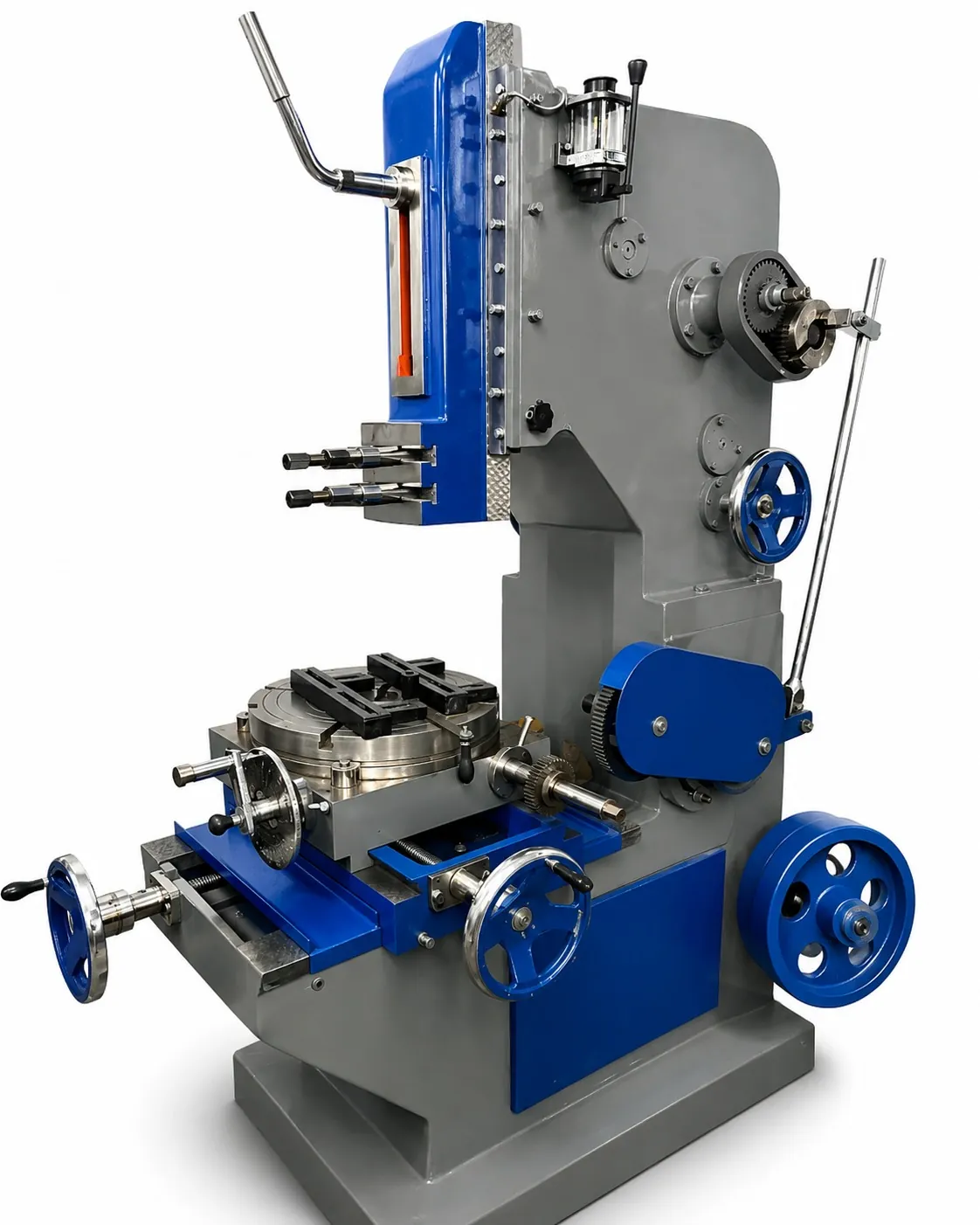

Slotter Machine
Heavy-duty slotting machine for precision vertical cutting and shaping operations.
Model No
8" (200 MM)
10" (250 MM)
12" (300 MM)
14" (350 MM)
16" (400 MM)
18" (450 MM)
20" (500 MM)
Heavy-duty construction with rigid
column and base.
Precision ram guideways for
accurate vertical movement.
Variable ram speed control
for different materials.
Technical Specifications
| Model | 8" (200 MM) | 10" (250 MM) | 12" (300 MM) | 14" (350 MM) | 16" (400 MM) | 18" (450 MM) | 20" (500 MM) |
|---|---|---|---|---|---|---|---|
| Length of Ram | 20" | 30" | 30" | 40" | 42" | 42" | 52" |
| Width of Ram | 6" | 8" | 8" | 9" | 9.5" | 9.5" | 12" |
| No. of Speeds | 2 | 2 | 4 | 4 | 4 | 4 | 4 |
| Max. Dia of Work Admitted | 20 | 32 | 36 | 48 | 48 | 48 | 72 |
| Max. Height of Work Admitted | 7 | 9 | 11 | 18 | 22 | 22 | 24 |
| Longitudinal Traverse of Table | 9 | 15 | 18 | 24 | 24 | 24 | 36 |
| Transverse Traverse of Table | 10 | 12 | 15 | 18 | 18 | 18 | 24 |
| Dia of Rotary Table | 12 | 15 | 18 | 24 | 24 | 24 | 42 |
| Power Required | 1 H.P. | 2 H.P. | 3 H.P. | 5 H.P. | 7.5 H.P. | 7.5 H.P. | 10 H.P. |
*Specifications are subject to changed without prior notice.
Applications
- Internal keyway cutting on gears and pulleys.
- Vertical slotting and grooving operations.
- External slotting on workpieces and components.
- Ideal for gear manufacturing and power transmission industry.
- Suitable for steel, cast iron, and non-ferrous materials.
Features
- Heavy-duty construction with rigid column and base.
- Precision ram guideways for accurate vertical movement.
- Variable ram speed control for different materials.
- Adjustable stroke length for versatile slotting.
- Rotary table with T-slots for workpiece clamping.
- Built-in overload protection for safe operation.
