Shaping Machines
Shaper Machine
Rigid construction with heavy cast iron frame.
Adjustable ram stroke and speed settings.
Quick-action tool post for easy tool changing.
Technical Specifications
| Model | 12" / 300 MM | 18" / 450 MM | 24" / 600 MM | 30" / 750 MM | 36" / 900 MM | 42" / 1000 MM |
|---|---|---|---|---|---|---|
| Length of Ram | 711 mm | 960 mm | 1232 mm | 1410 mm | 1651 mm | 2108 mm |
| Length x Width of Ram Bearing | 480 x 170 mm | 700 x 270 mm | 867 x 300 mm | 1020 x 330 mm | 1130 x 330 mm | 1600 x 330 mm |
| Distance from Table to Ram Max / Min | 257 / 41 mm | 360 / 75 mm | 450 / 76 mm | 510 / 75 mm | 565 / 102 mm | 600 / 102 mm |
| Working Surface of Table | 305 x 228 mm | 457 x 305 mm | 610 x 370 mm | 762 x 390 mm | 915 x 457 mm | 1078 x 533 mm |
| Horizontal Table Travel Max | 330 mm | 488 mm | 635 mm | 787 mm | 940 mm | 1075 mm |
| Vertical Table Travel Max | 140 mm | 330 mm | 380 mm | 450 mm | 525 mm | 585 mm |
| Angular Movement of Table | 60L / 60R | 60L / 60R | 60L / 60R | 60L / 60R | 60L / 60R | 60L / 60R |
| Vertical Travel of Tool Slide Max | 140 mm | 152 mm | 190 mm | 203 mm | 255 mm | 300 mm |
| Swivel of Tool Head Max | 60L / 60R | 60L / 60R | 60L / 60R | 60L / 60R | 60L / 60R | 60L / 60R |
| Base Length x Width | 940 x 483 mm | 1346 x 502 mm | 1676 x 610 mm | 1829 x 660 mm | 1980 x 660 mm | 2286 x 762 mm |
| Number of Ram Speeds | 3 | 4 | 4 | 4 | 4 | 4 |
| Ram Speeds | 30,6,90 | 16,32,64,96 | 14,28,42,62 | 8,16,32,48 | 10,20,30,50 | 8,16,32,48 |
| Motor Pulley Diameter | 5 mm | 70 mm | 70 mm | 76 mm | 88 mm | 88 mm |
| Motor | 1 / 1440 | 2 / 1440 | 3 / 1440 | 3 / 960 | 5 / 960 | 7.5 / 960 |
*Specifications are subject to changed without prior notice.
Applications
- Shaping of flat and horizontal surfaces on metal parts.
- Grooving and slotting operations on workpieces.
- Contour shaping with angular tool head adjustments.
- Ideal for tool rooms and general engineering workshops.
- Suitable for shaping steel, cast iron, and brass components.
Features
- Rigid construction with heavy cast iron frame.
- Adjustable ram stroke and speed settings.
- Quick-action tool post for easy tool changing.
- Precision-ground table surface for accuracy.
- Swiveling tool head for angular and contour shaping.
- Smooth reciprocating motion with adjustable stroke length.

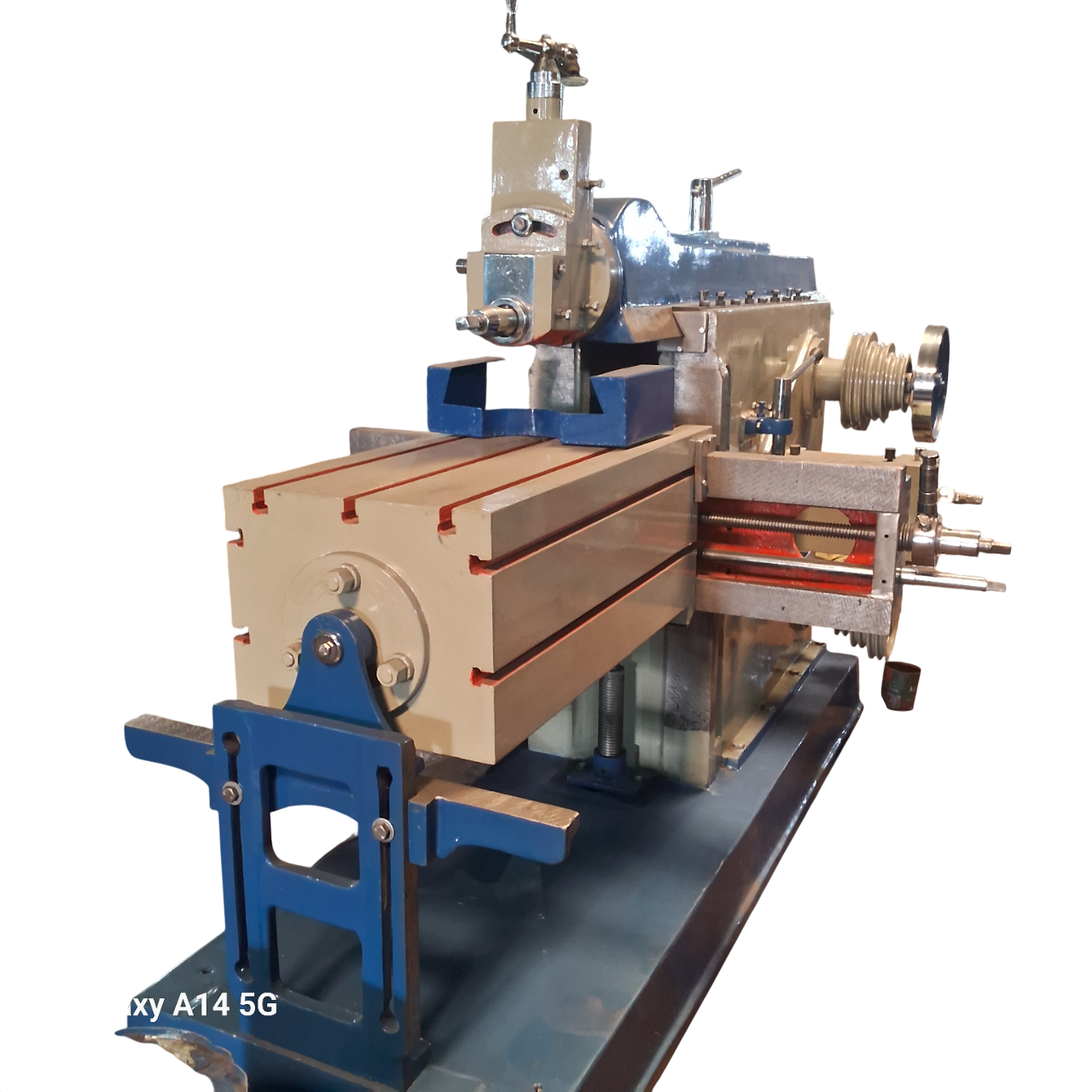

Photo Gallery
