Plano Miller Machines

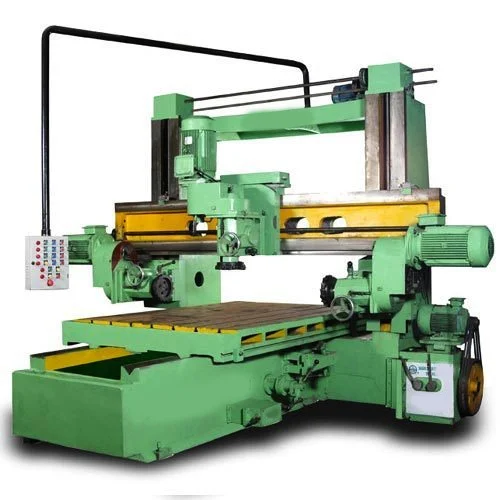

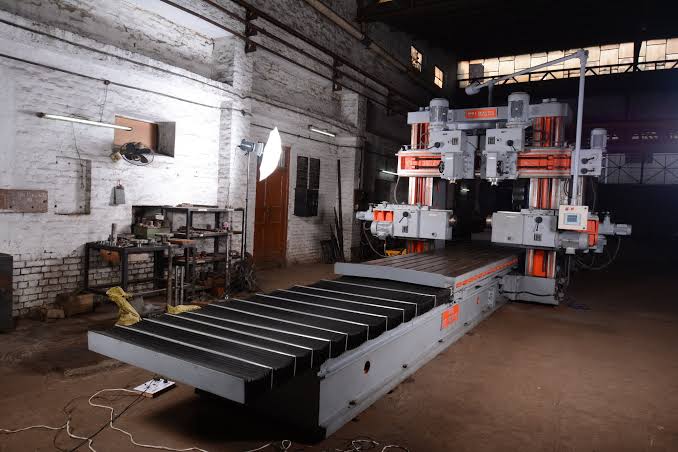

Plano Miller
Heavy-duty box-type column and
cross rail construction.
Precision ground table with
T-slots for versatile clamping.
Multiple saddle and table
feeds for efficient machining.

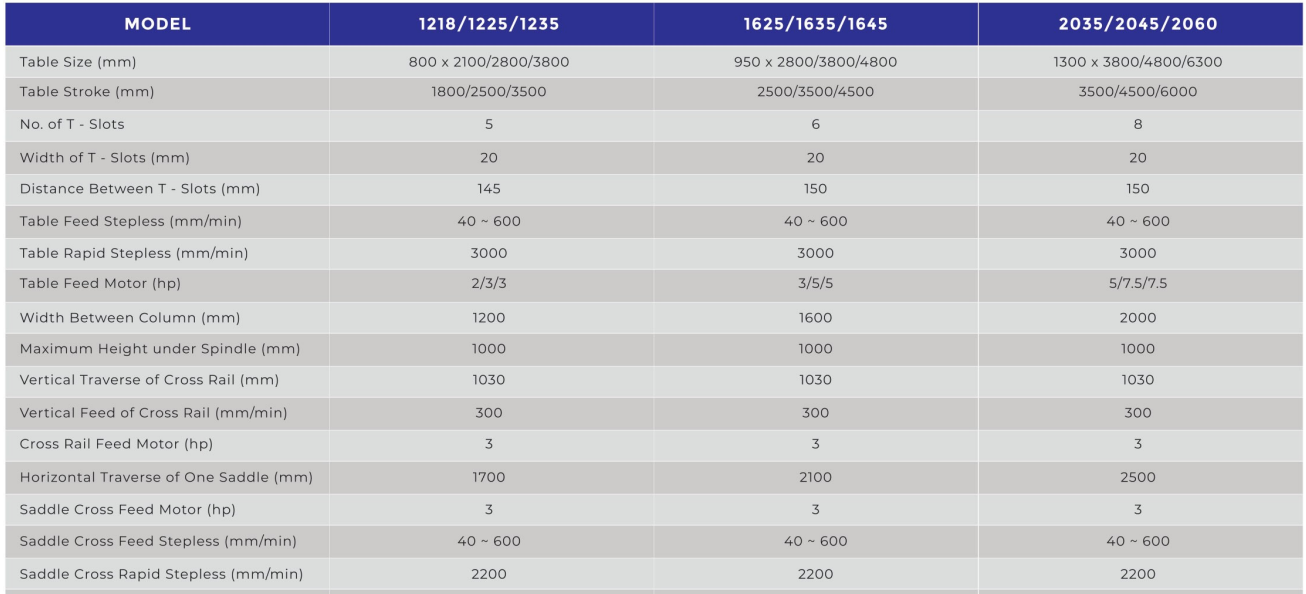

Technical Specifications
| Model | 1218 / 1225 / 1235 | 1625 / 1635 / 1645 | 2035 / 2045 / 2060 |
|---|---|---|---|
| Table Size | 800 x 2100/2800/3800 mm | 950 x 2800/3800/4800 mm | 1300 x 3800/4800/6300 mm |
| Table Stroke | 1800/2500/3500 | 2500/3500/4500 | 3500/4500/6000 |
| No. of T-Slots | 5 | 6 | 8 |
| Width of T-Slots | 20 mm | 20 mm | 20 mm |
| Distance Between T-Slots | 145 mm | 150 mm | 150 mm |
| Table Feed Stepless | 40 ~ 600 mm/min | 40 ~ 600 mm/min | 40 ~ 600 mm/min |
| Table Rapid Stepless | 3000 mm/min | 3000 mm/min | 3000 mm/min |
| Table Feed Motor | 2/3/3 hp | 3/5/5 hp | 5/7.5/7.5 hp |
| Width Between Column | 1200 mm | 1600 mm | 2000 mm |
| Maximum Height under Spindle | 1000 mm | 1000 mm | 1000 mm |
| Vertical Traverse of Cross Rail | 1030 mm | 1030 mm | 1030 mm |
| Vertical Feed of Cross Rail | 300 mm/min | 300 mm/min | 300 mm/min |
| Cross Rail Feed Motor | 3 hp | 3 hp | 3 hp |
| Horizontal Traverse of One Saddle | 1700 mm | 2100 mm | 2500 mm |
| Saddle Cross Feed Motor | 3 hp | 3 hp | 3 hp |
| Saddle Cross Feed Stepless | 40 ~ 600 mm/min | 40 ~ 600 mm/min | 40 ~ 600 mm/min |
| Saddle Cross Rapid Stepless | 2200 mm/min | 2200 mm/min | 2200 mm/min |
*Specifications are subject to changed without prior notice.
Applications
- Milling of large flat surfaces on heavy castings and fabrications.
- Gear cutting and spline cutting on large components.
- Facing and squaring of large workpieces.
- Ideal for heavy engineering, shipbuilding, and power plants.
- Suitable for machining large steel structures and frames.
Features
- Heavy-duty box-type column and cross rail construction.
- Precision ground table with T-slots for versatile clamping.
- Multiple saddle and table feeds for efficient machining.
- Powerful spindle motor for heavy cutting operations.
- Adjustable cross rail for varying workpiece heights.
- Robust design for machining large and heavy workpieces.

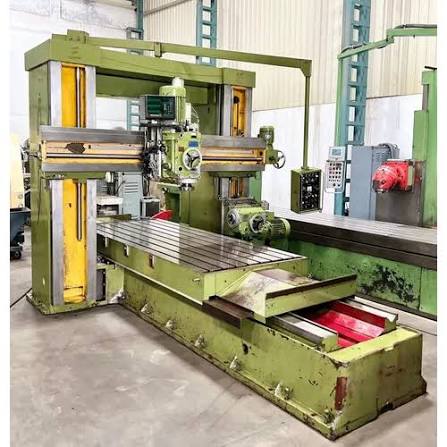

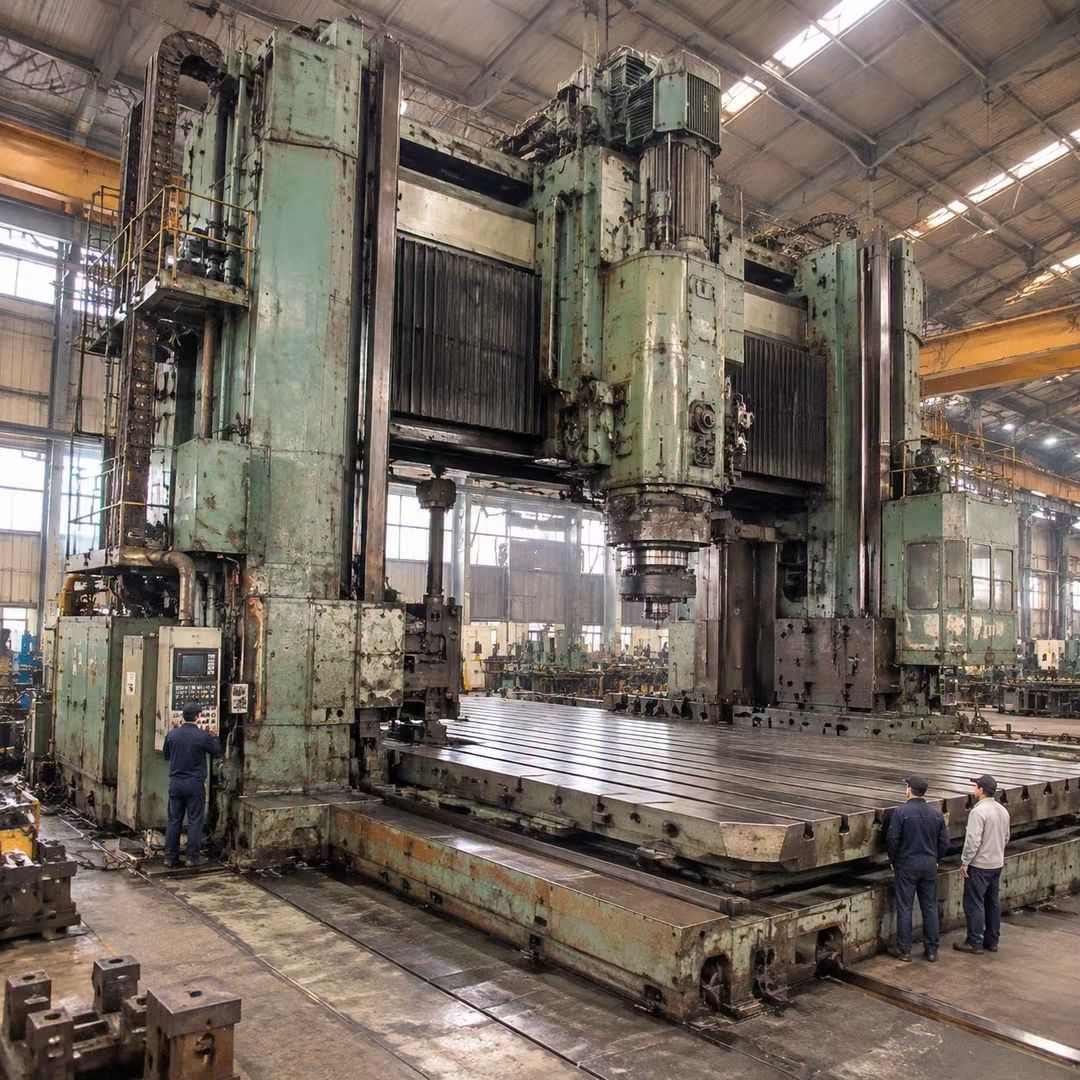

Photo Gallery
Interested in this machine?
Get in touch for specifications, pricing, and technical consultation. Our team is ready to help.
