Lathe Machines

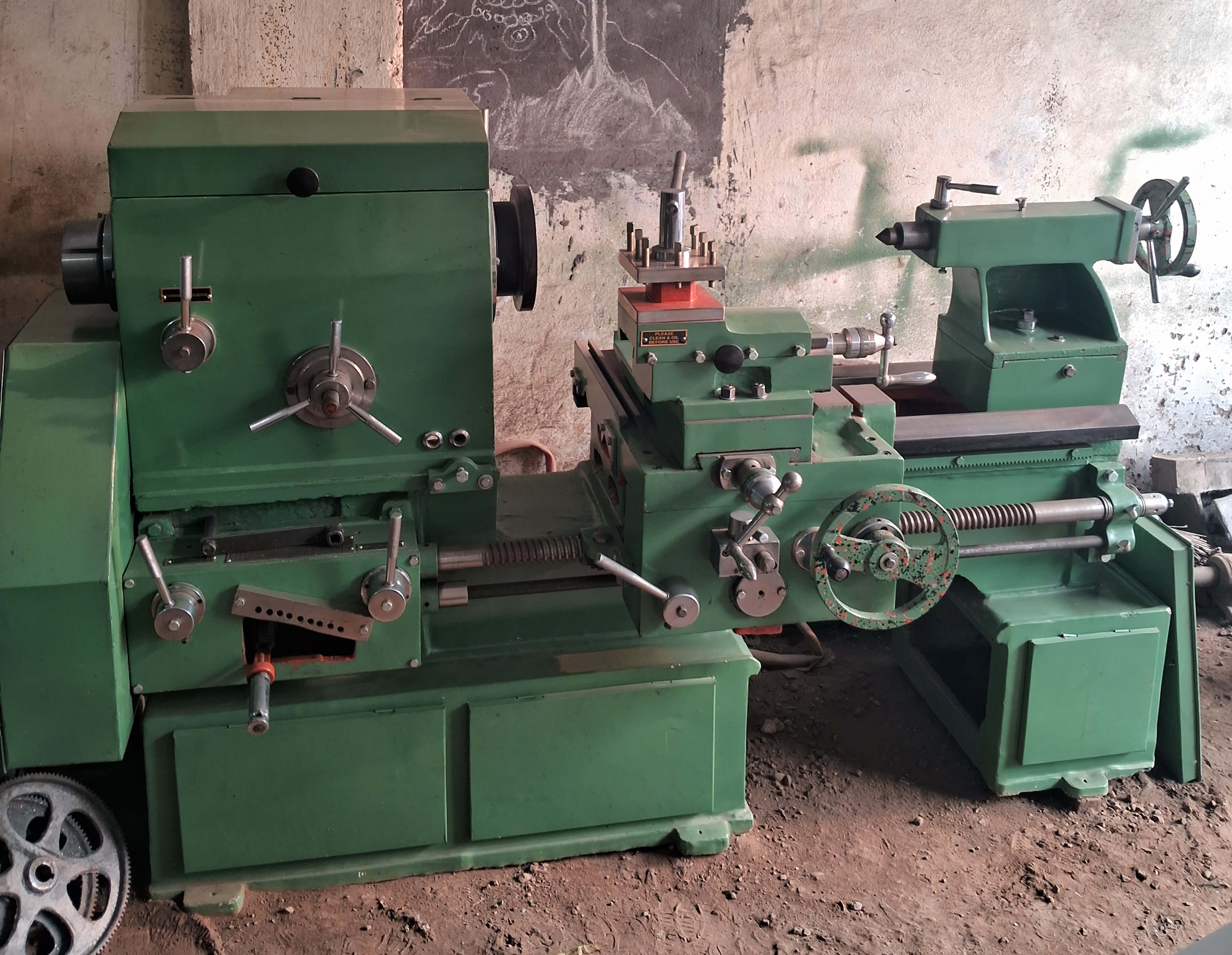

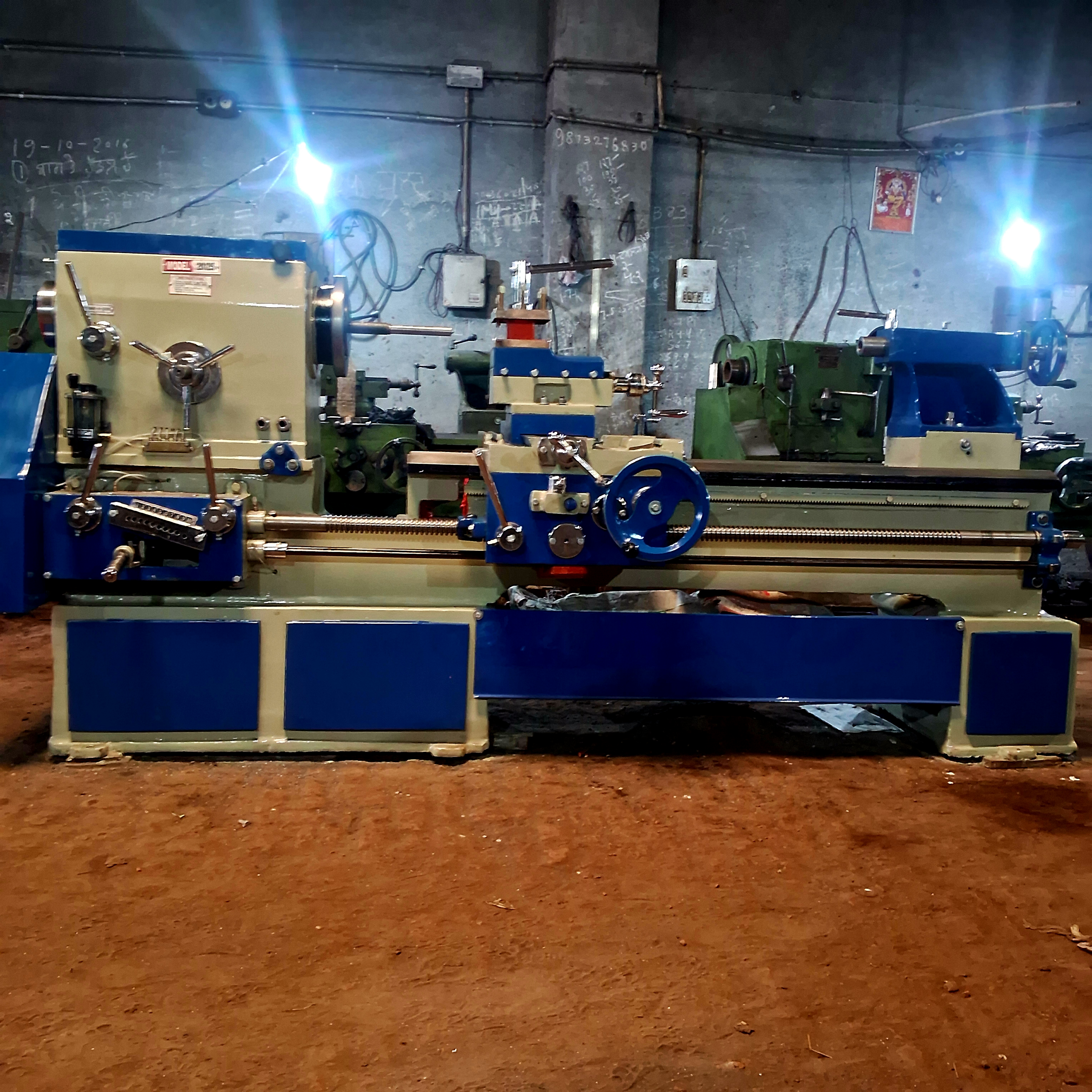

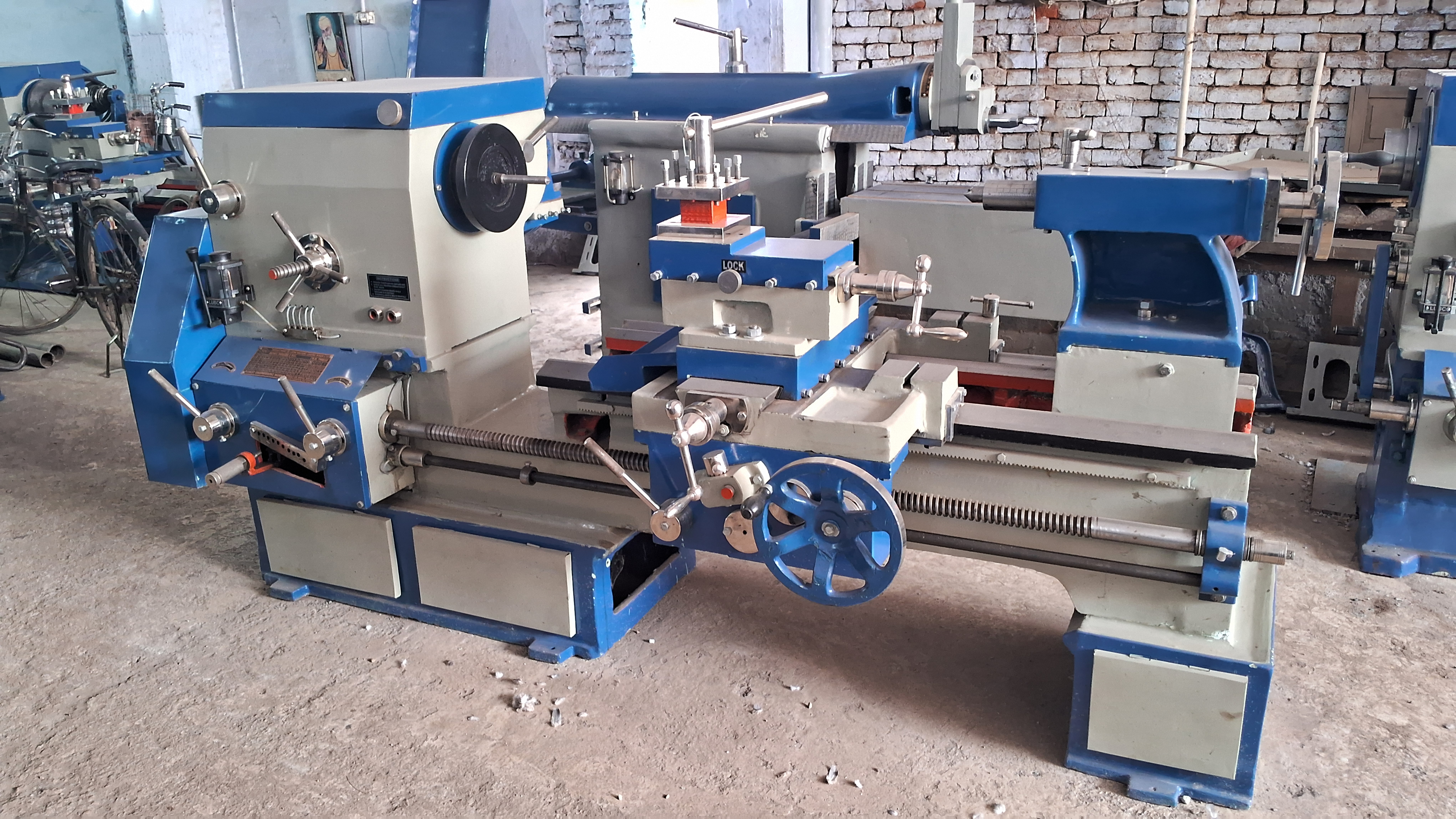

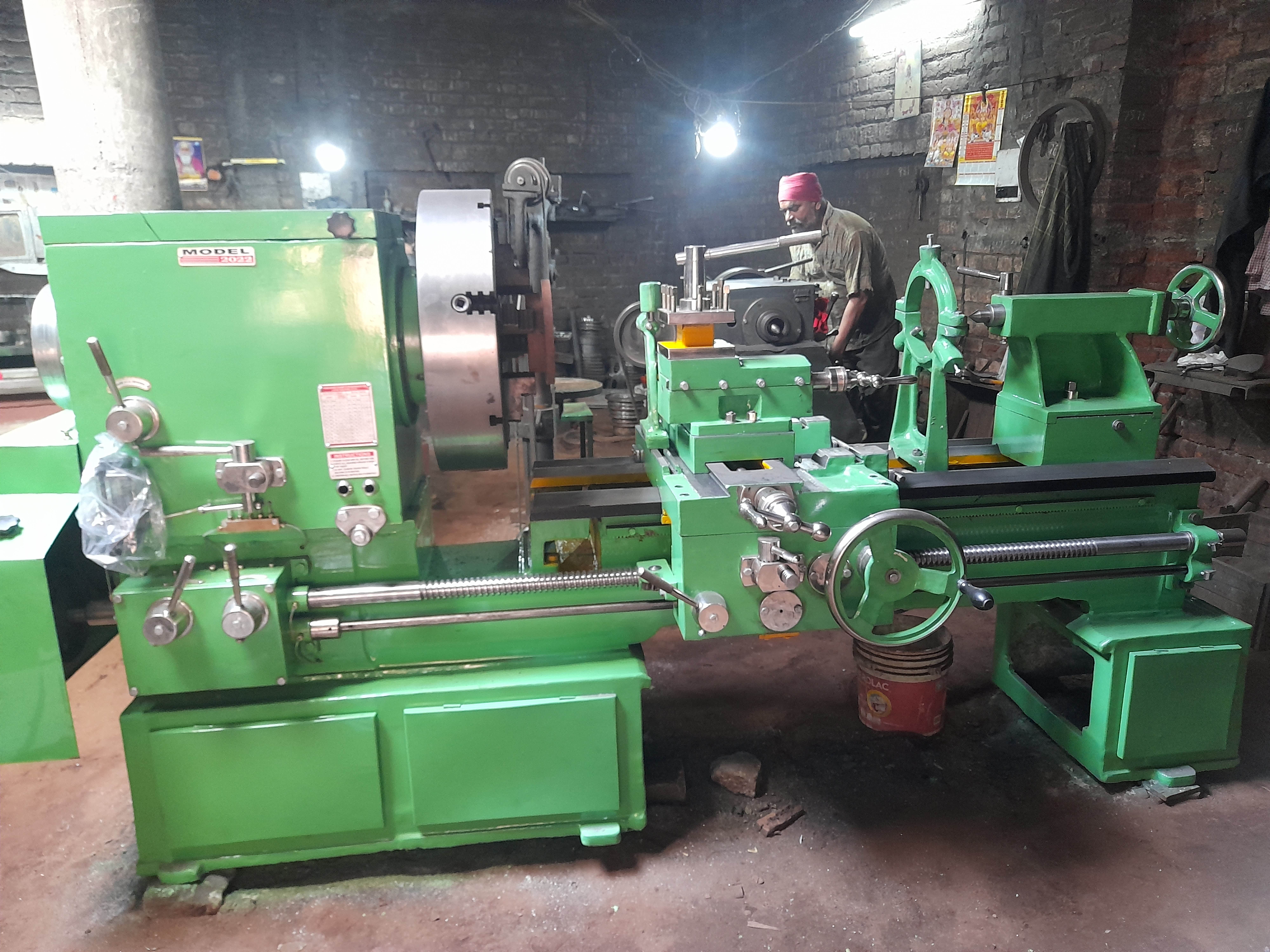

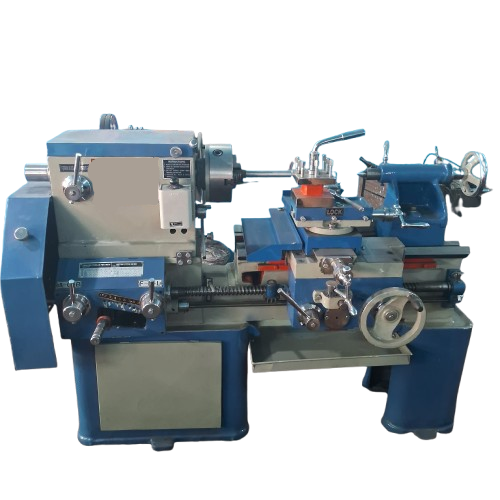

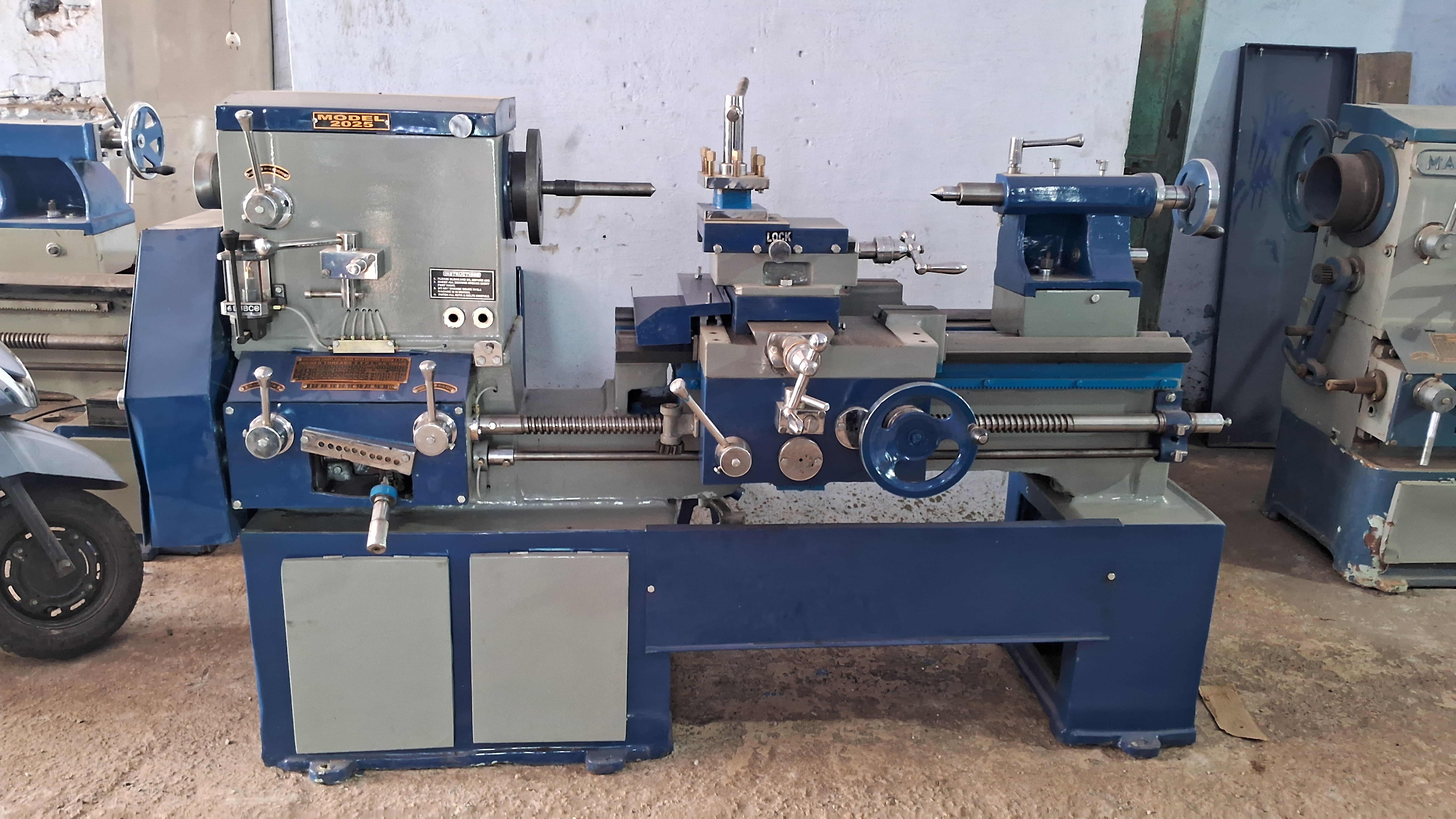

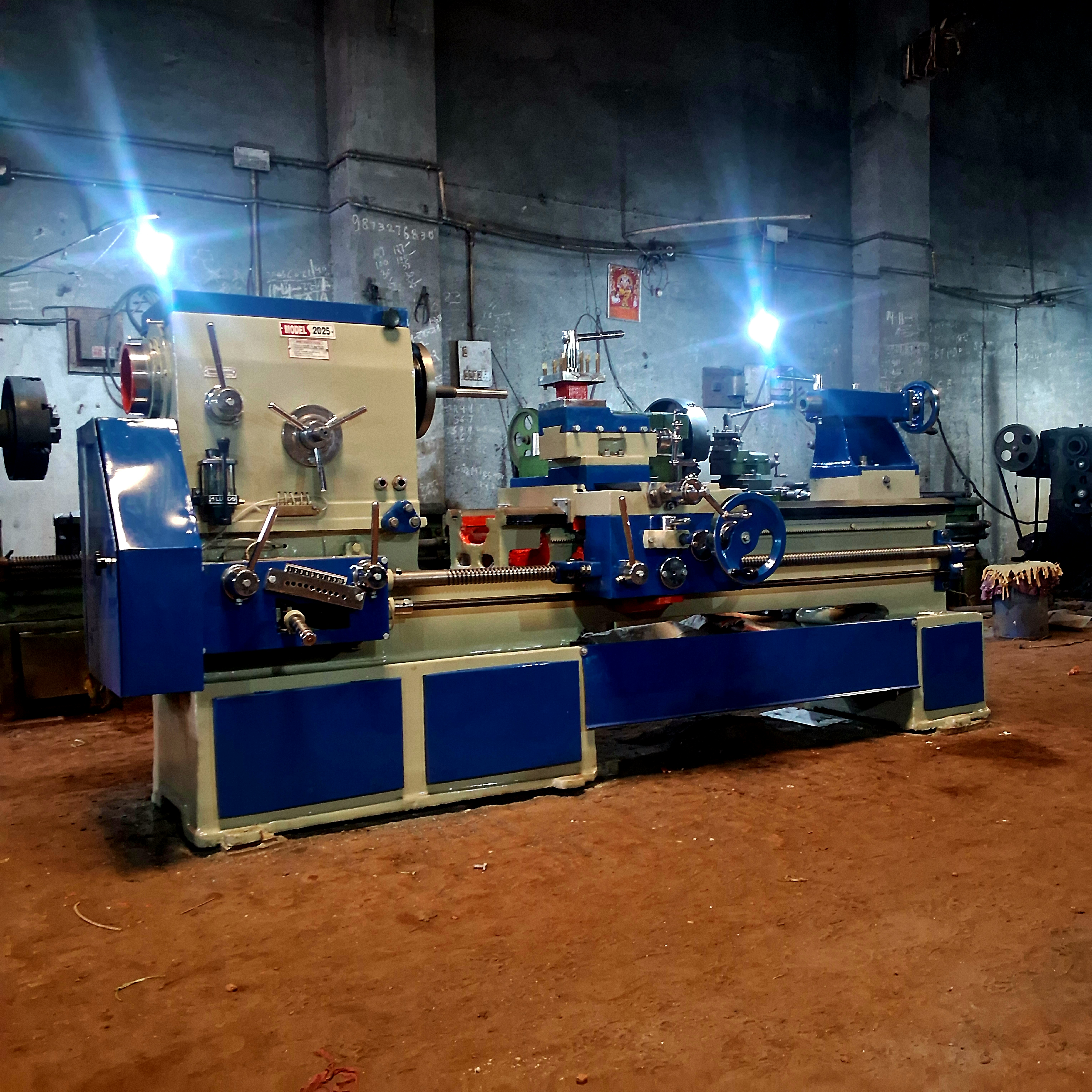

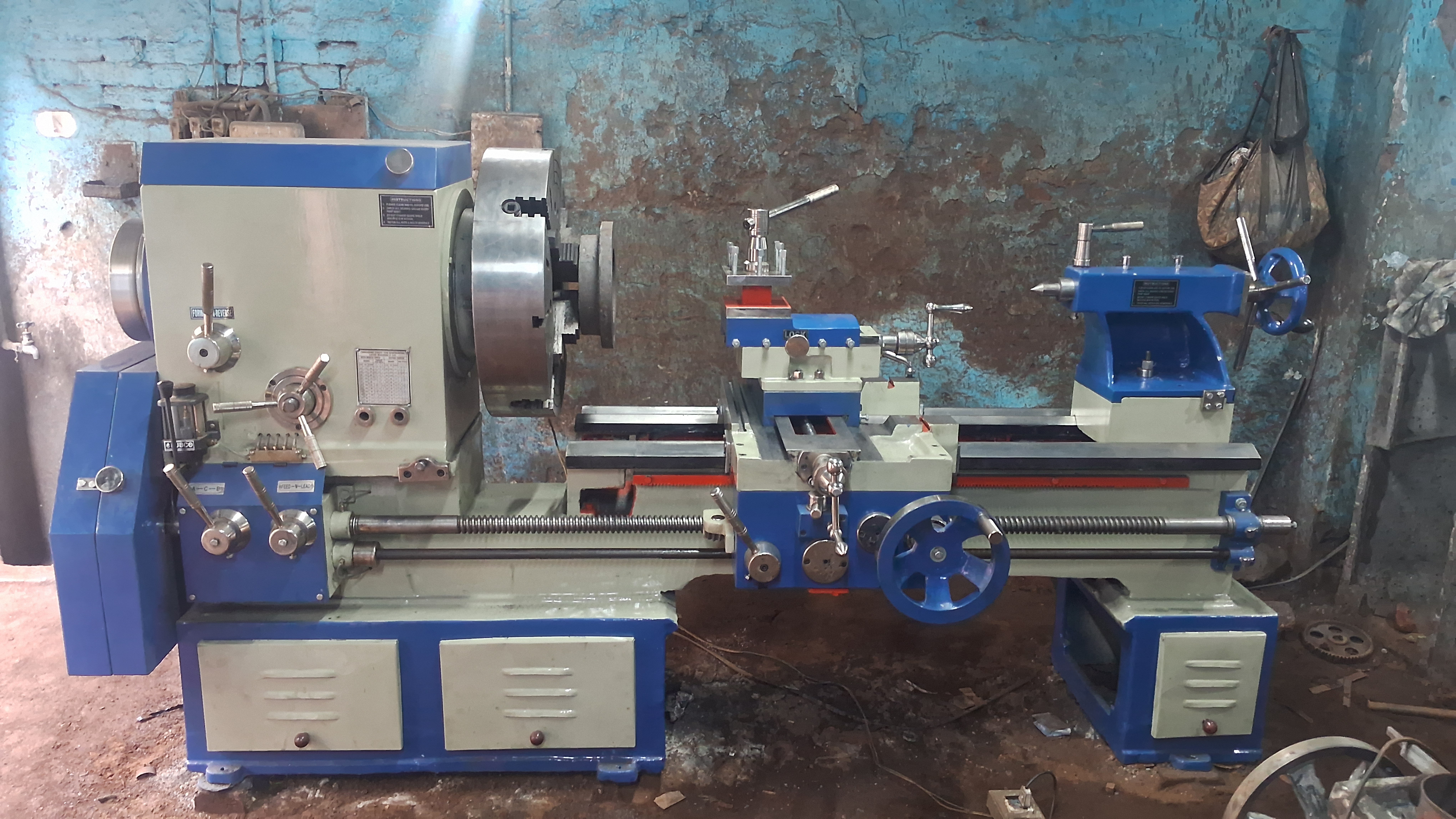

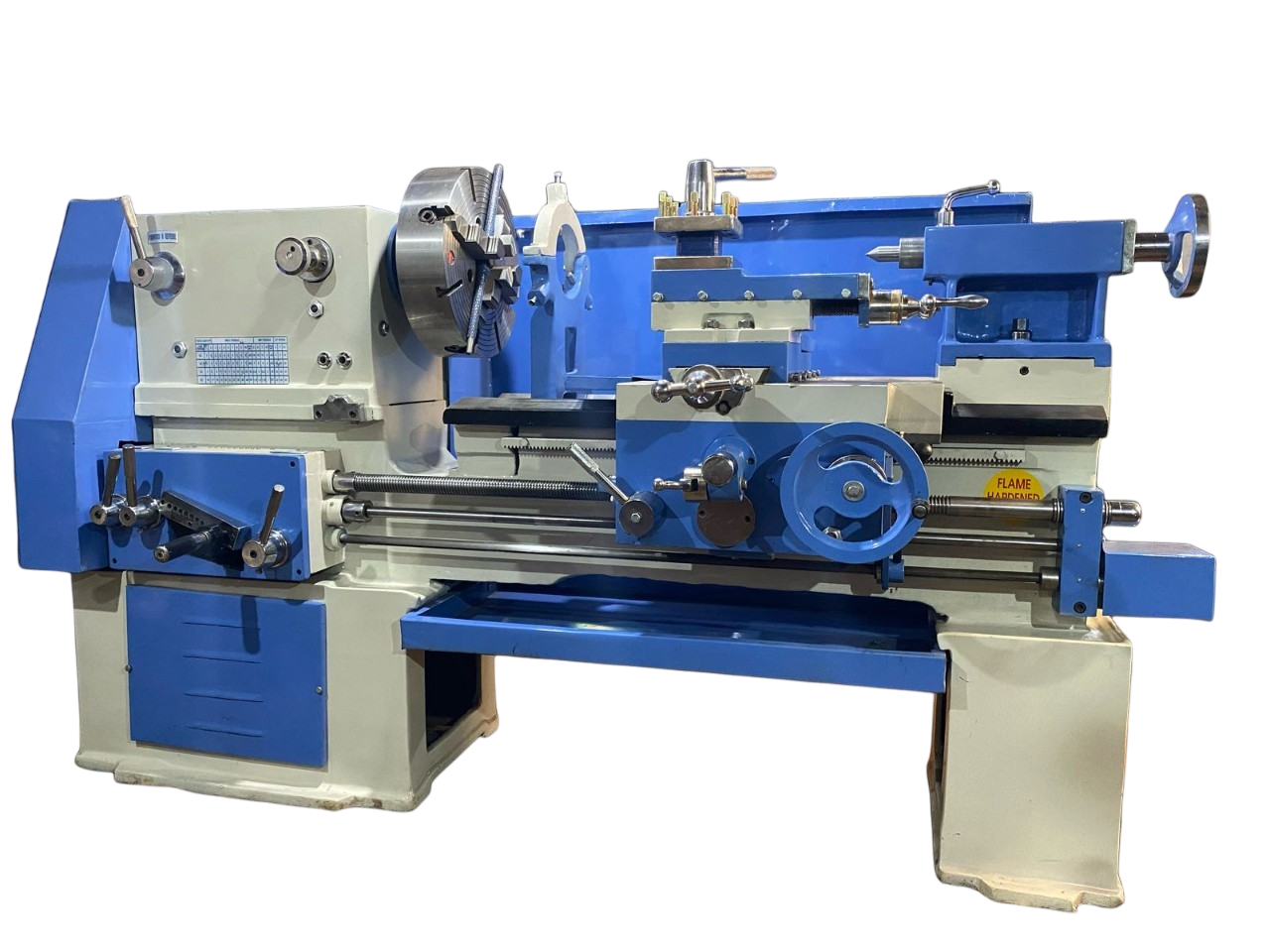

Light Duty Lathe Machine
V-Belt drive light duty lathe with high tensile casting headstock and hardened ground bed.
Heavy-duty construction for stable
and vibration-free operation.
Precision ground spindle and
bed for superior accuracy.
Built-in overload protection for
motor and gearbox.
Technical Specifications
| Model | 4.6 FT | 5.3 FT | 6 FT | 7 FT | 9 FT | 10 FT | 12 FT |
|---|---|---|---|---|---|---|---|
| Bed Length | 4.6 FT | 5.3 FT | 6 FT | 7 FT | 9 FT | 10 FT | 12 FT |
| Width of Bed | 241MM(9 1/2") | 241 M"(9 1/2") | 241 MM(9 1/2") | 250 MM(10") | 400 MM(16") | 400 MM(16") | 400 MM(16") |
| Height of Center | 165MM(6 1/2") | 165 M"(6 1/2") | 165 MM(6 1/2") | 381 MM(15") | 381 MM(15") | 381 MM(15") | 381 MM(15") |
| Swing over Bed | 300 MM(12") | 300 M (12") | 300 MM(12") | 736 MM(29") | 736 MM(29") | 736 MM(29") | 736 MM(29") |
| Swing over Cross Slide | 175 MM(7") | 175 MM(7") | 175 MM(7") | 280 MM(11") | 280 MM(11") | 280 MM(11") | 280 MM(11") |
| Admit between Centre | 635 MM(25") | 865 M (34") | 1090 MM(43") | 1000MM(40") | 1600MM(63") | 1900MM(75") | 2500MM(98") |
| Spindle Thread / Dia | 8TPI – 60 MM | 8TPI – 60 MM | 8TPI – 60 MM | 6TPI | 6TPI | 6TPI | 6TPI |
| Spindle Bore | 40 MM | 40 MM | 40 MM | 80 MM | 80 MM | 80 MM | 80 MM |
| Tail Stock Quill Dia | 38 MM | 38 M | 38 MM | 60 MM | 60 MM | 60 MM | 60 MM |
| Lead Screw | 25MM X 4TPI | 25MM X 4TPI | 25MM X 4TPI | 45 MM X 4TPI | 45 MM X 4TPI | 45 MM X 4TPI | 45 MM X 4TPI |
| Metric Thread | 13(1 to 6MM) | 13(1 to 6MM) | 13(1 to 6MM) | 13(1 to 6MM) | 13(1 to 6MM) | 13(1 to 6MM) | 13(1 to 6MM) |
| Inch. Thread | 19(2 to 24TPI) | 19(2 to 24TPI) | 19(2 to 24TPI) | 19(2 to 24TPI) | 19(2 to 24TPI) | 19(2 to 24TPI) | 19(2 to 24TPI) |
| No. of Spindle Speed | 4 + 4 = 8 | 4 + 4 = 8 | 4 + 4 = 8 | 4 + 4 = 8 | 4 + 4 = 8 | 4 + 4 = 8 | 4 + 4 = 8 |
| Rpm (Mini. / Maxi.) | 35 / 825 | 35 / 825 | 35 / 825 | 25 / 450 | 25 / 450 | 25 / 450 | 25 / 450 |
*Specifications are subject to changed without prior notice.
Applications
- Turning, facing, and threading of cylindrical workpieces.
- Boring and drilling operations on metal components.
- Knurling and grooving for fastener manufacturing.
- Ideal for tool rooms, maintenance workshops, and production floors.
- Suitable for ferrous and non-ferrous metal machining.
Features
- Heavy-duty construction for stable and vibration-free operation.
- Precision ground spindle and bed for superior accuracy.
- Built-in overload protection for motor and gearbox.
- Easy-to-use quick-change gearbox for speed adjustment.
- Smooth and powerful longitudinal and cross feeds.
- Adjustable tailstock with hardened and ground spindle.
