Lathe Machines

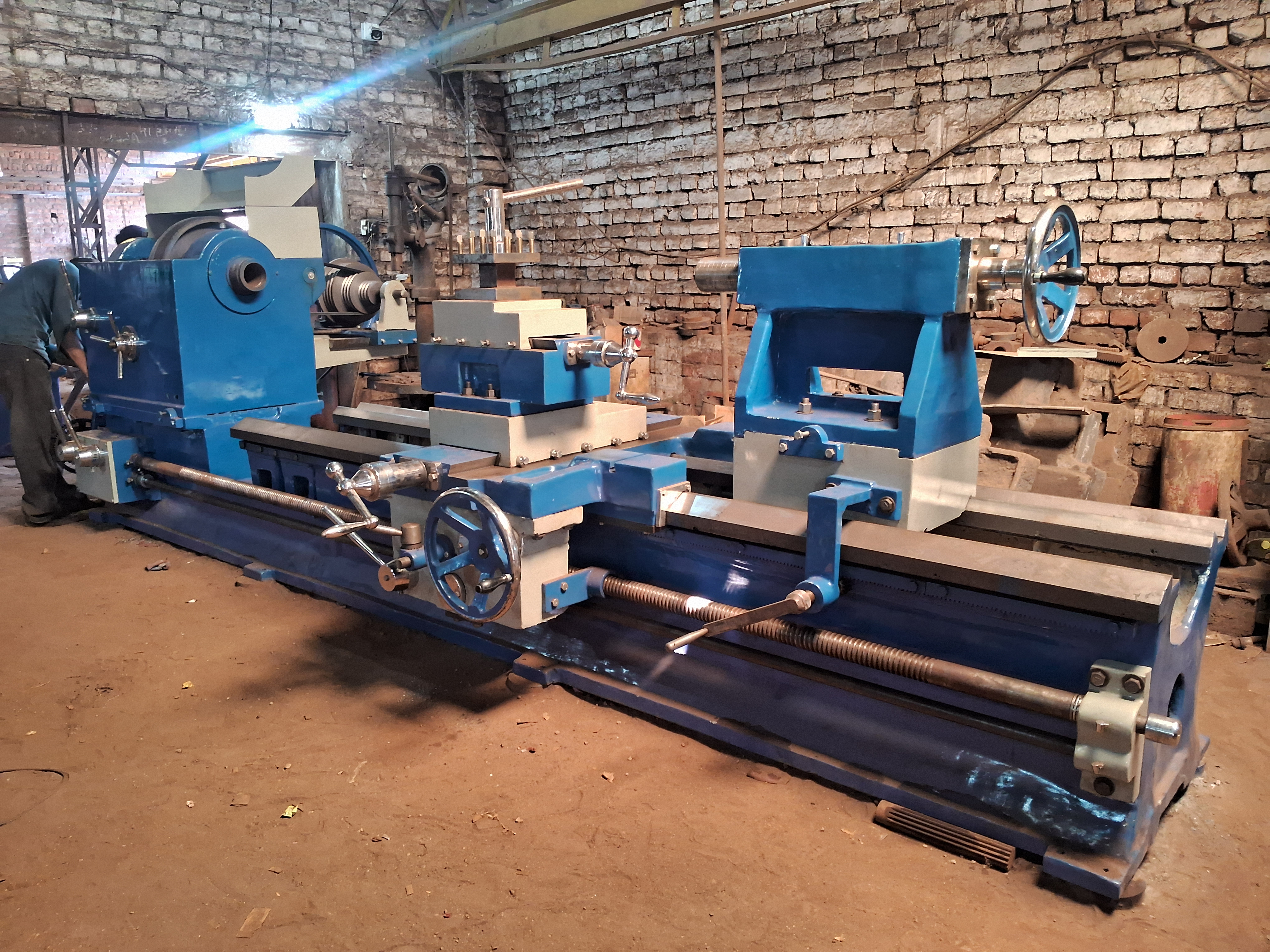

Heavy Duty Lathe Machine
Heavy and extra heavy duty V-Belt drive lathes (MAX, YBX, CD series).
Heavy-duty construction for stable
and vibration-free operation.
Precision ground spindle and
bed for superior accuracy.
Built-in overload protection for
motor and gearbox.
Technical Specifications
| Model | 22 FT | 24 FT | 30 FT | 36 FT | 40 FT (1200 MM Bed) | 40 FT (1500 MM Bed) |
|---|---|---|---|---|---|---|
| Bed Length | 22 FT | 24 FT | 30 FT | 36 FT | 40 FT | 40 FT |
| Width of Bed | 30" / 750 MM | 32" / 800 MM | 36" / 900 MM | 40" / 1000 MM | 48" / 1200 MM | 60" / 1500 MM |
| Height of Center | 28" / 700 MM | 30" / 750 MM | 34" / 850 MM | 38" / 950 MM | 46" / 1150 MM | 55" / 1375 MM |
| Spindle Bore | 4 1/8" / 105 MM | 4 1/8" / 105 MM | 4 1/8" / 105 MM | 4 1/8" / 105 MM | 4 1/8" / 105 MM | 4 1/8" / 105 MM |
| Swing in Gap | 80" / 2000 MM | 86" / 2150 MM | 92" / 2300 MM | 101" / 2525 MM | 116" / 2900 MM | 142" / 3550 MM |
| Swing over Bed | 56" / 1400 MM | 60" / 1500 MM | 68" / 1700 MM | 76" / 1900 MM | 92" / 2300 MM | 110" / 2750 MM |
| No. of Spindle Speed | 6 | 6 | 6 | 6 | 6 | 6 |
| Admit between Centre | 192" / 4800 MM | 216" / 5400 MM | 282" / 7050 MM | 353" / 8825 MM | 400" / 10000 MM | 381" / 9525 MM |
| Leading Screw Dia | 2 1/2" / 70 MM | 3" / 75 MM | 3" / 75 MM | 3 1/2" / 88 MM | 4 1/2" / 112 MM | 5" / 125 MM |
| H.P. Required | 10 H.P | 15 H.P | 25 H.P | 25 H.P | 30 H.P | 40 H.P |
*Specifications are subject to changed without prior notice.
Applications
- Turning, facing, and threading of cylindrical workpieces.
- Boring and drilling operations on metal components.
- Knurling and grooving for fastener manufacturing.
- Ideal for tool rooms, maintenance workshops, and production floors.
- Suitable for ferrous and non-ferrous metal machining.
Features
- Heavy-duty construction for stable and vibration-free operation.
- Precision ground spindle and bed for superior accuracy.
- Built-in overload protection for motor and gearbox.
- Easy-to-use quick-change gearbox for speed adjustment.
- Smooth and powerful longitudinal and cross feeds.
- Adjustable tailstock with hardened and ground spindle.

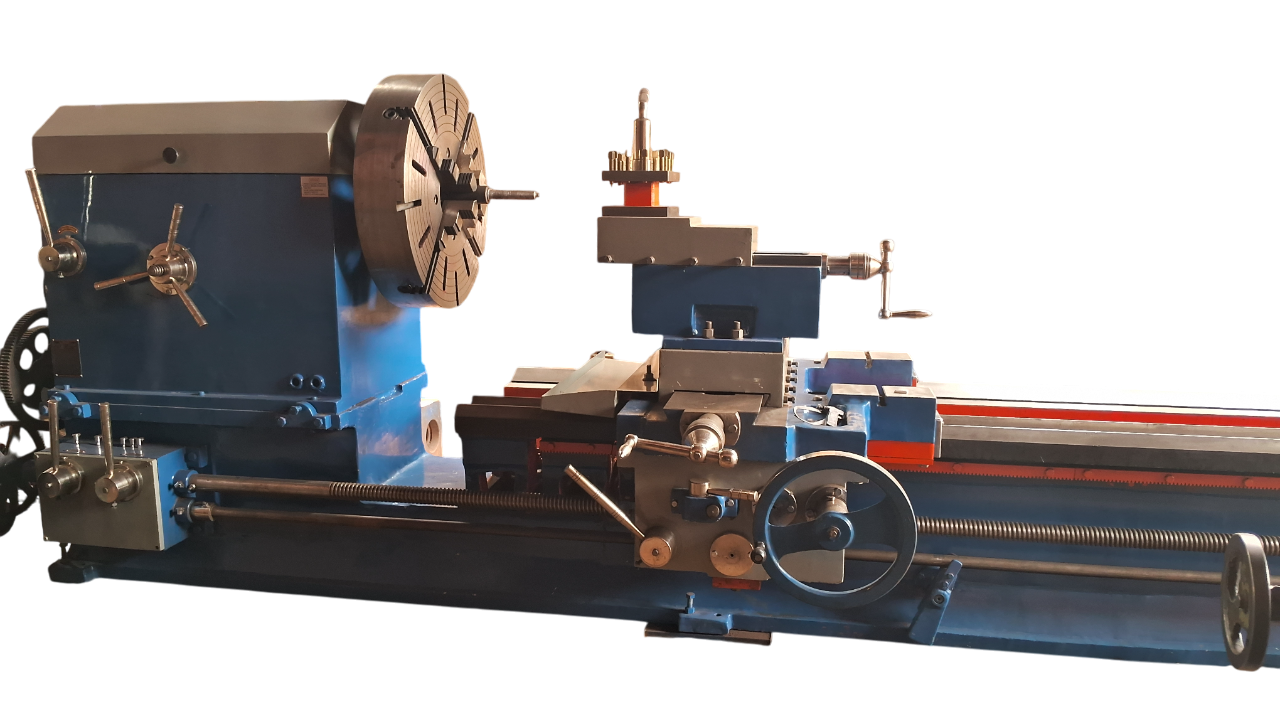

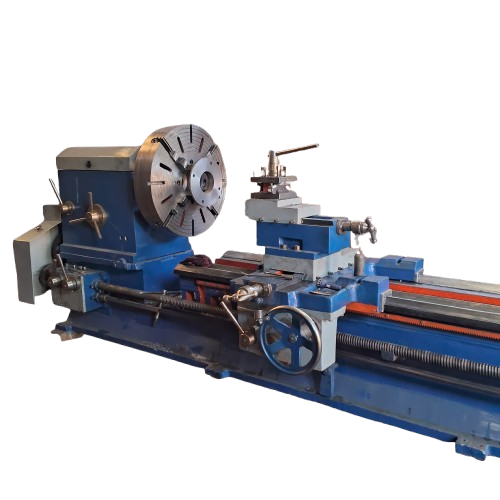

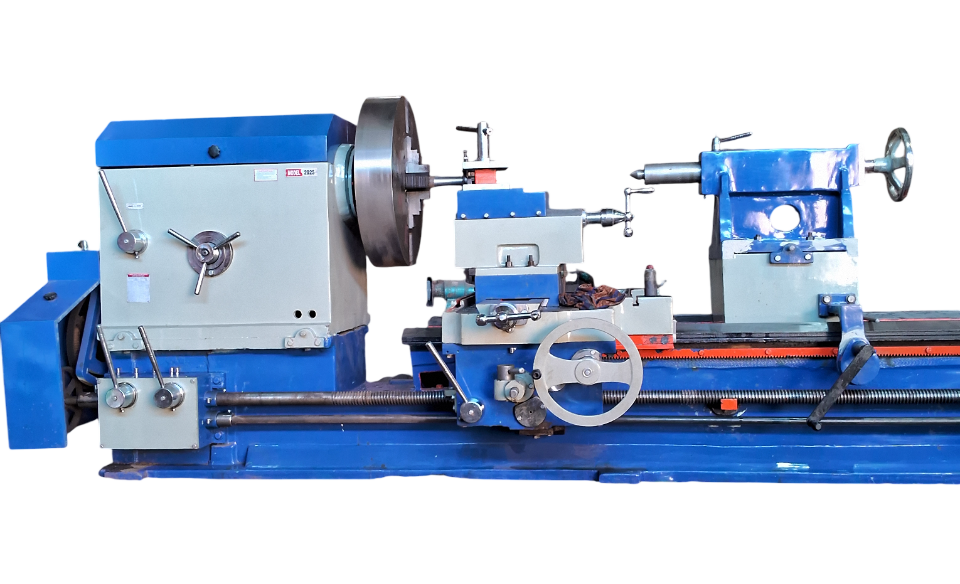

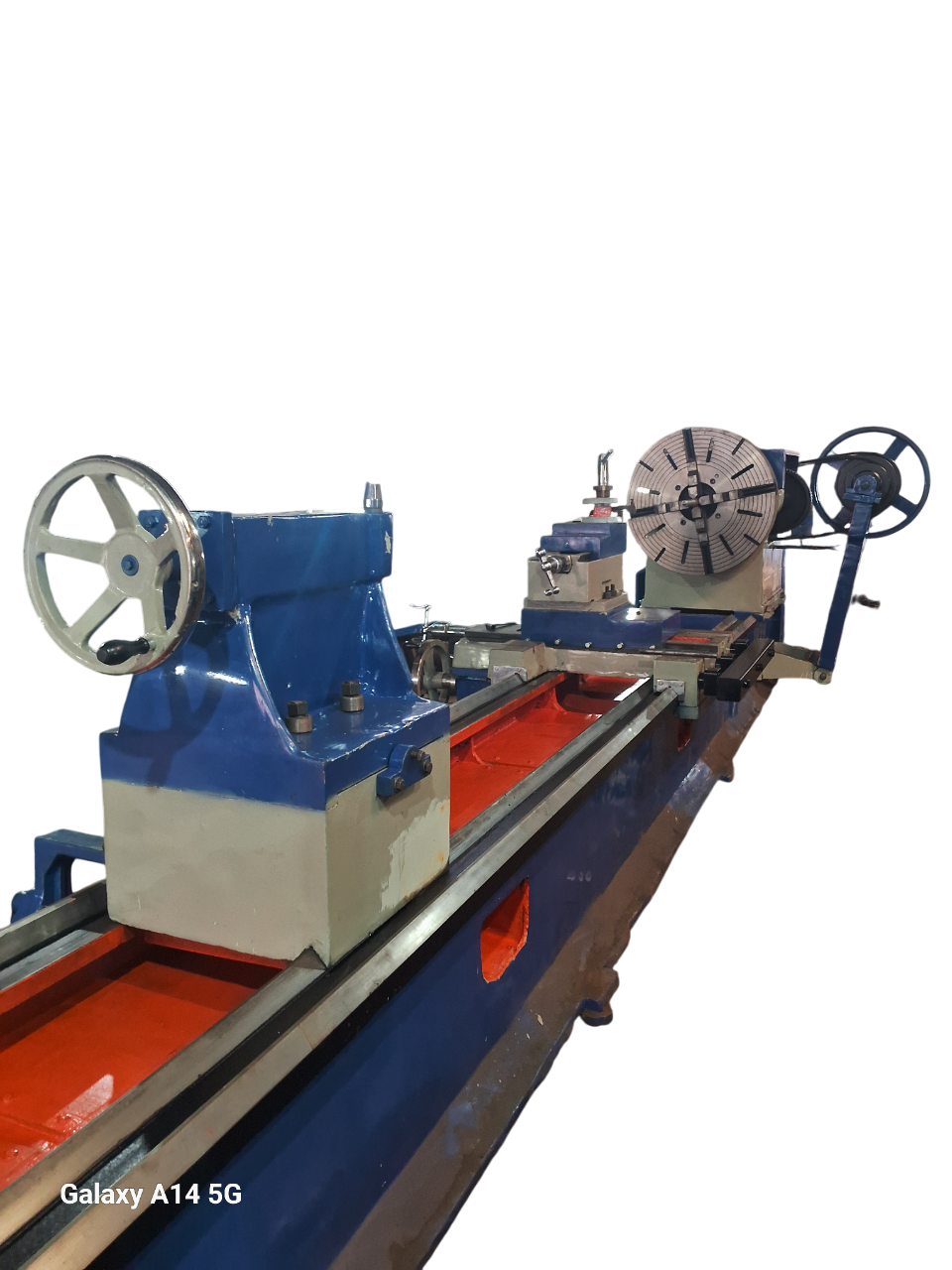

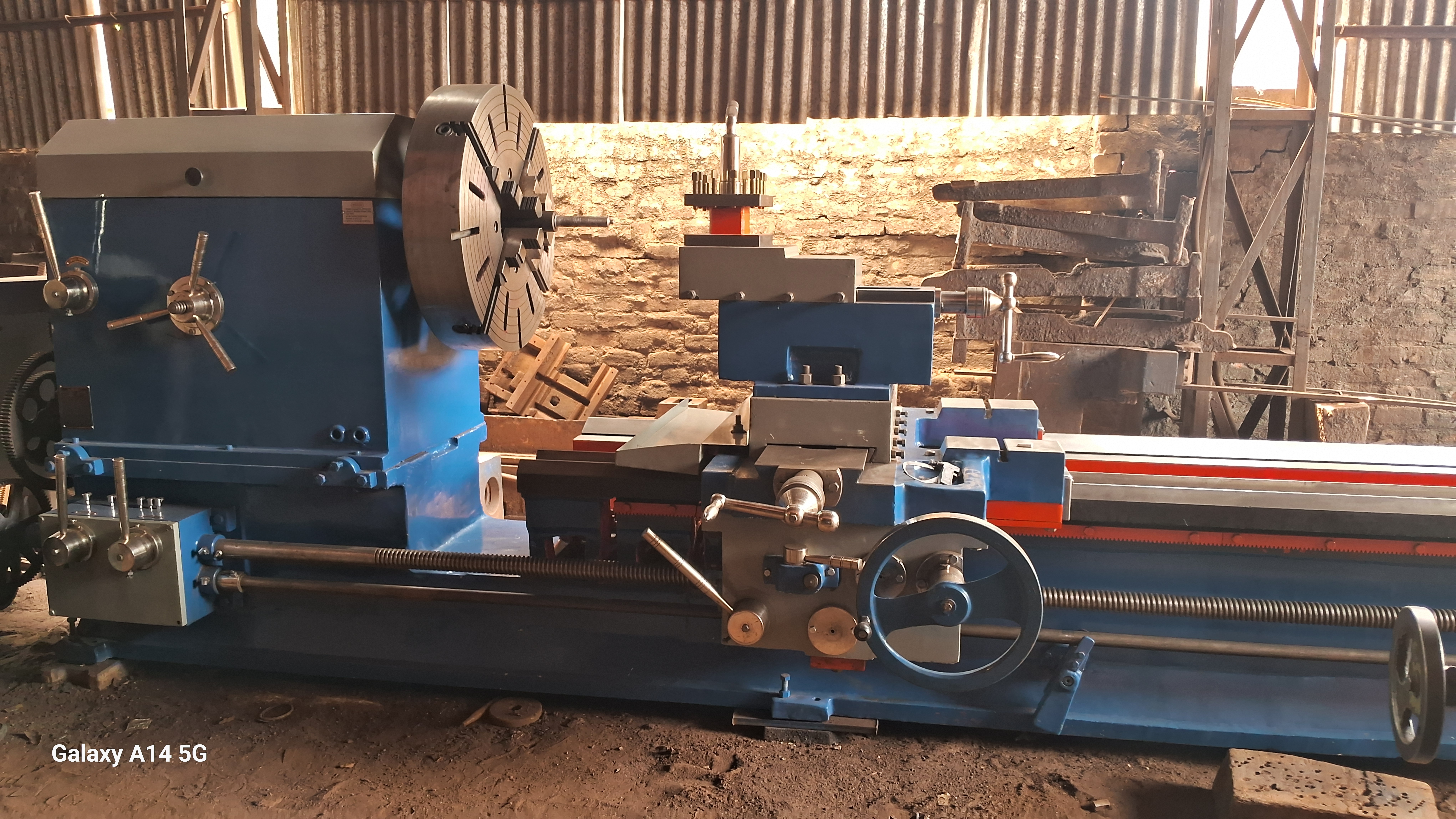

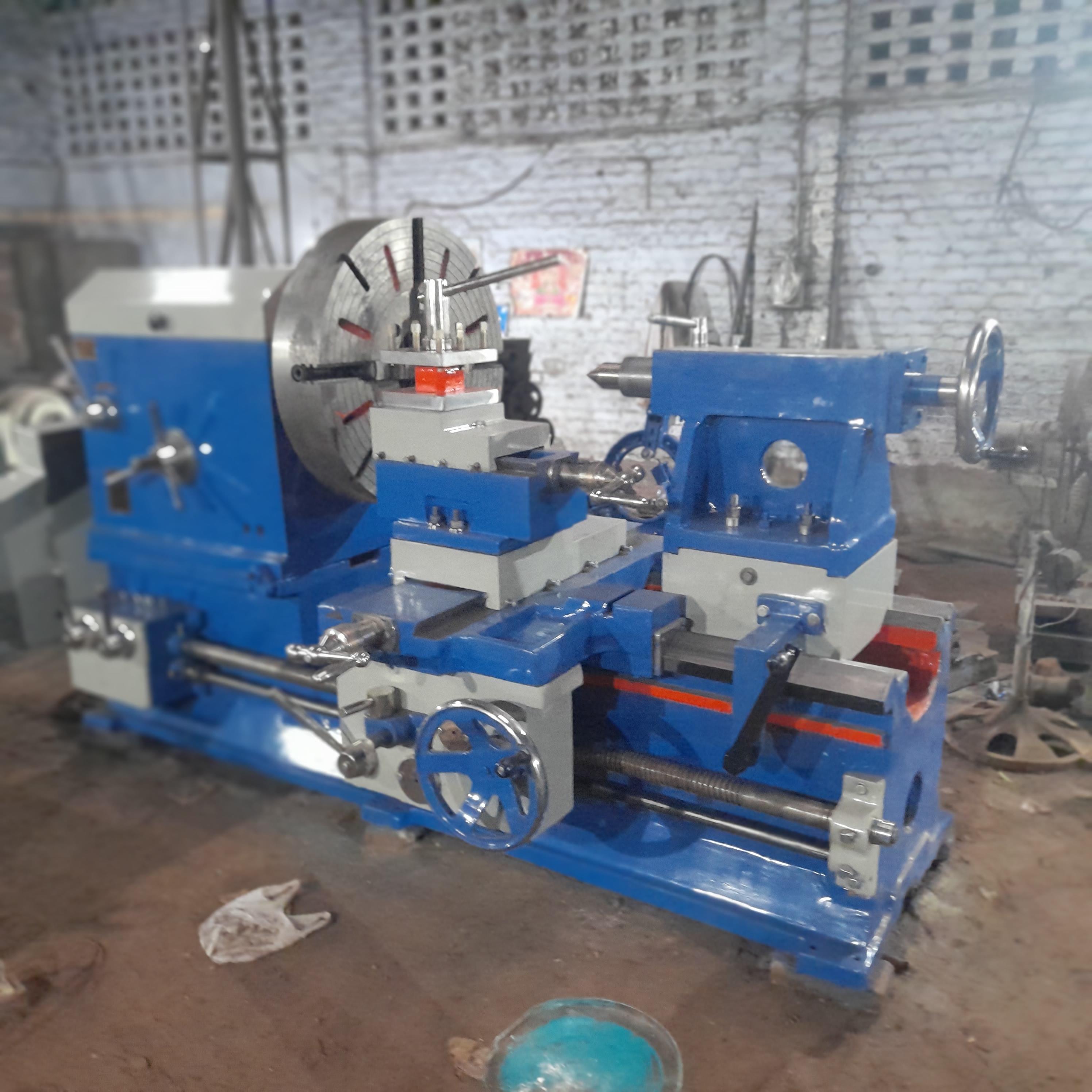

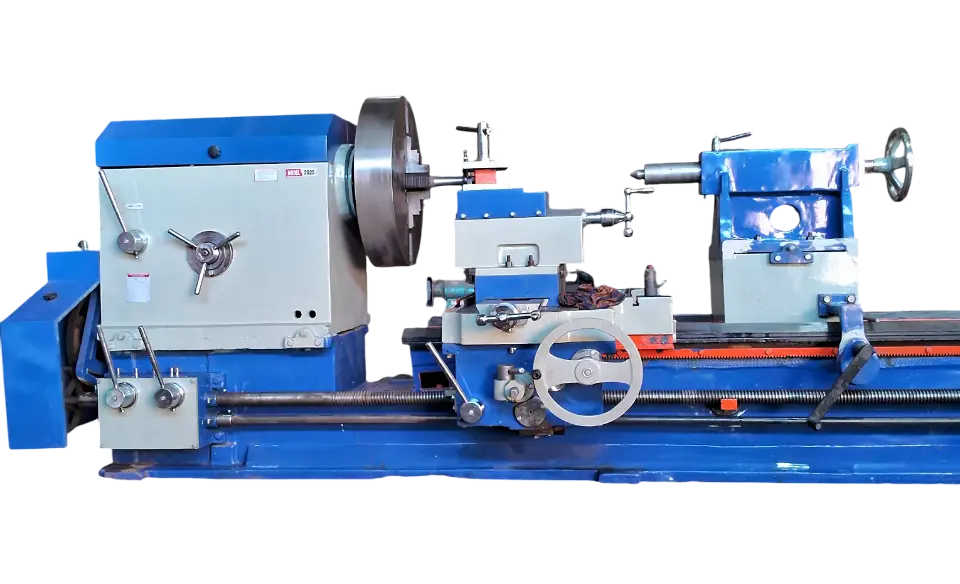

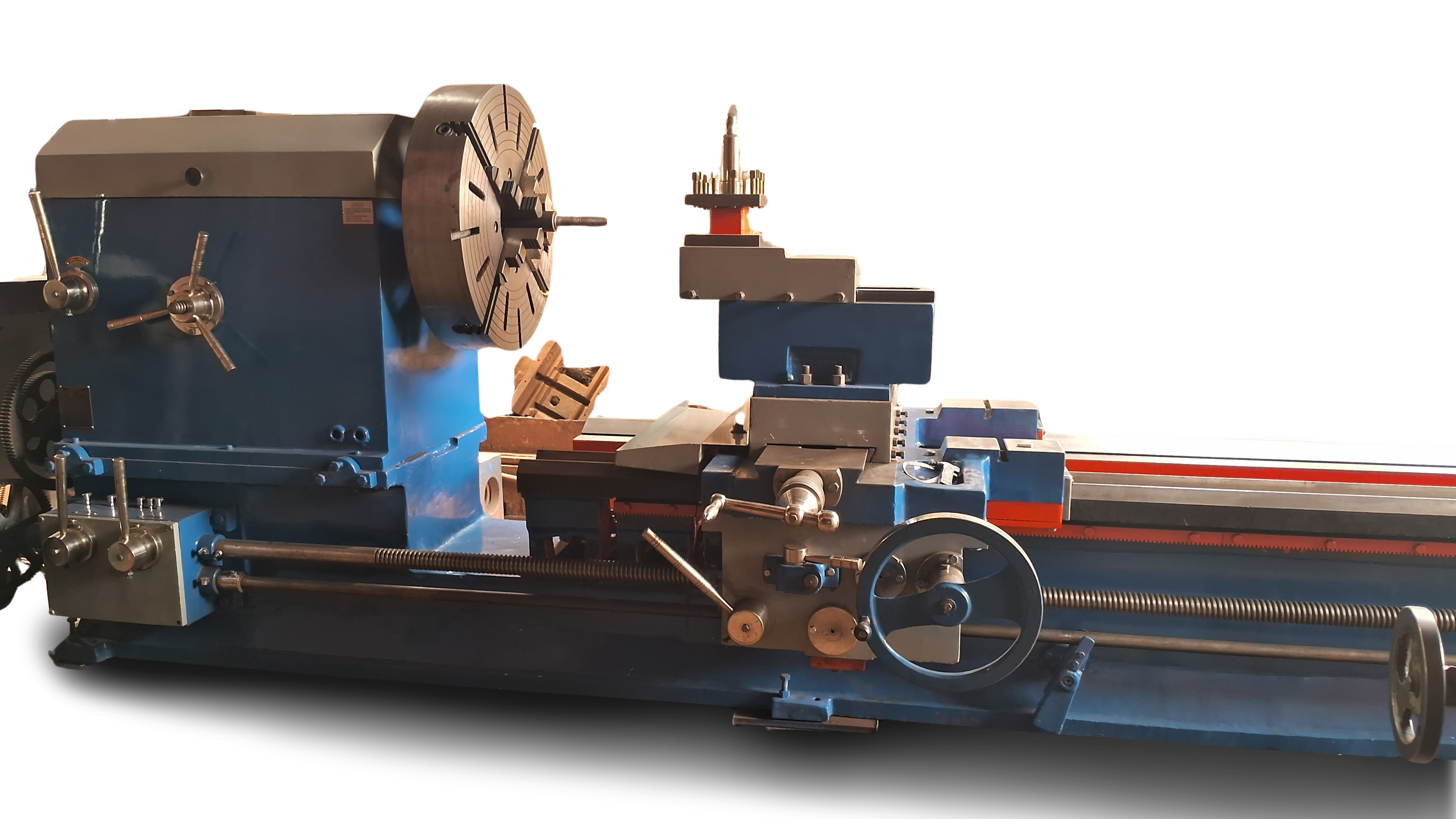

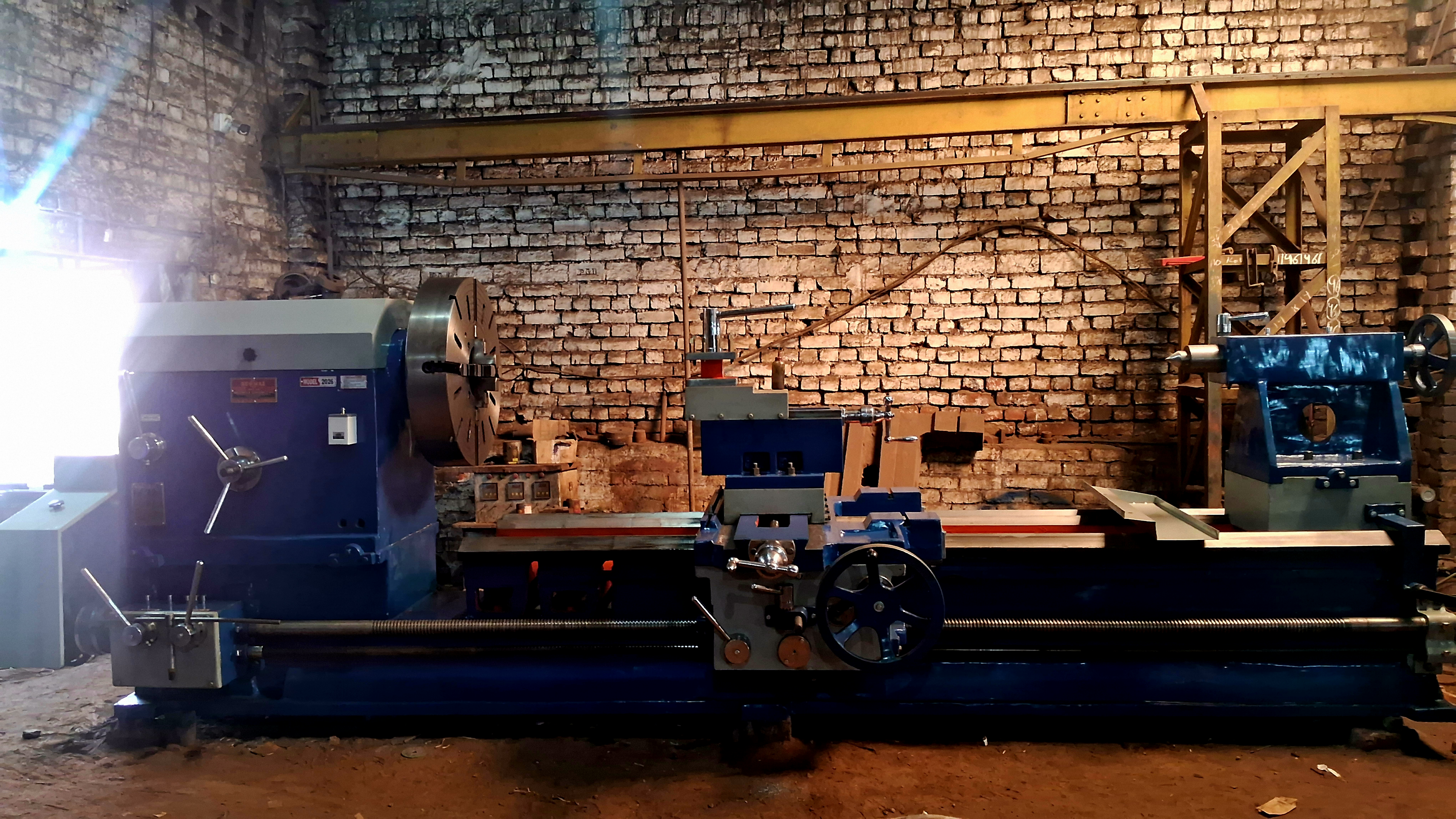

Photo Gallery
Interested in this machine?
Get in touch for specifications, pricing, and technical consultation. Our team is ready to help.
