Lathe Machines

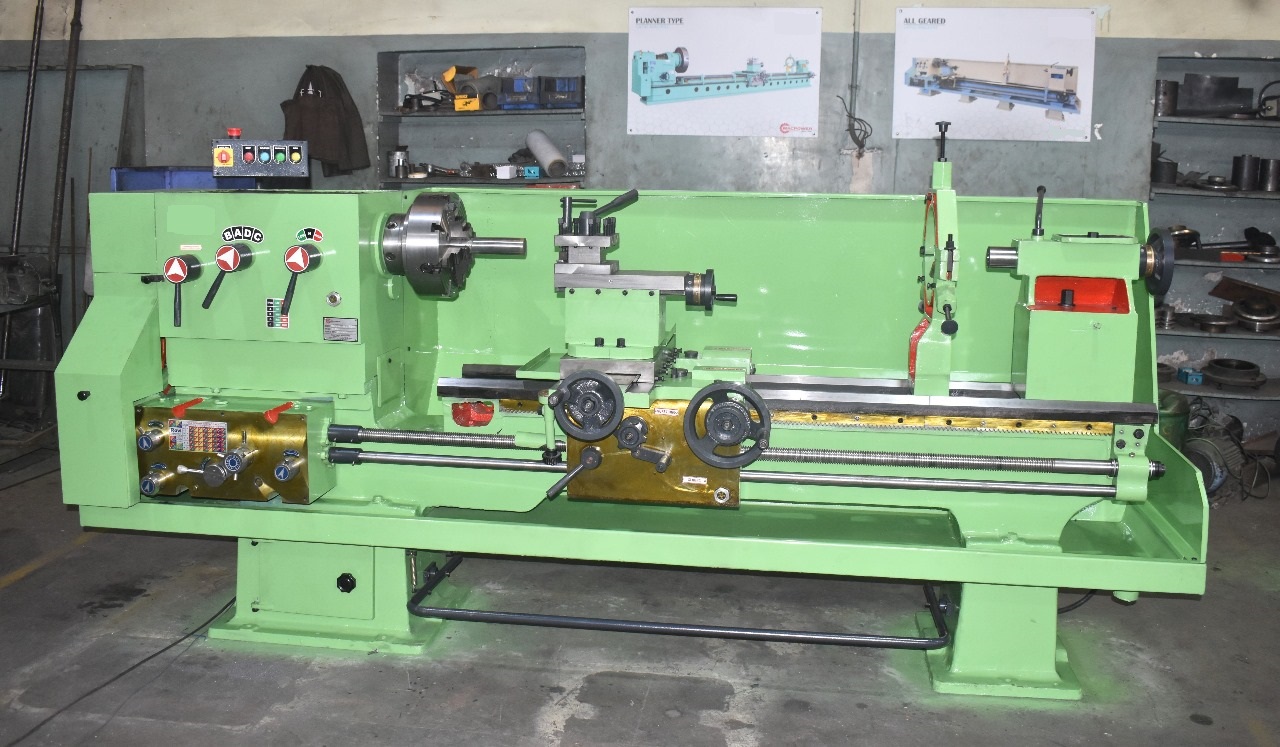

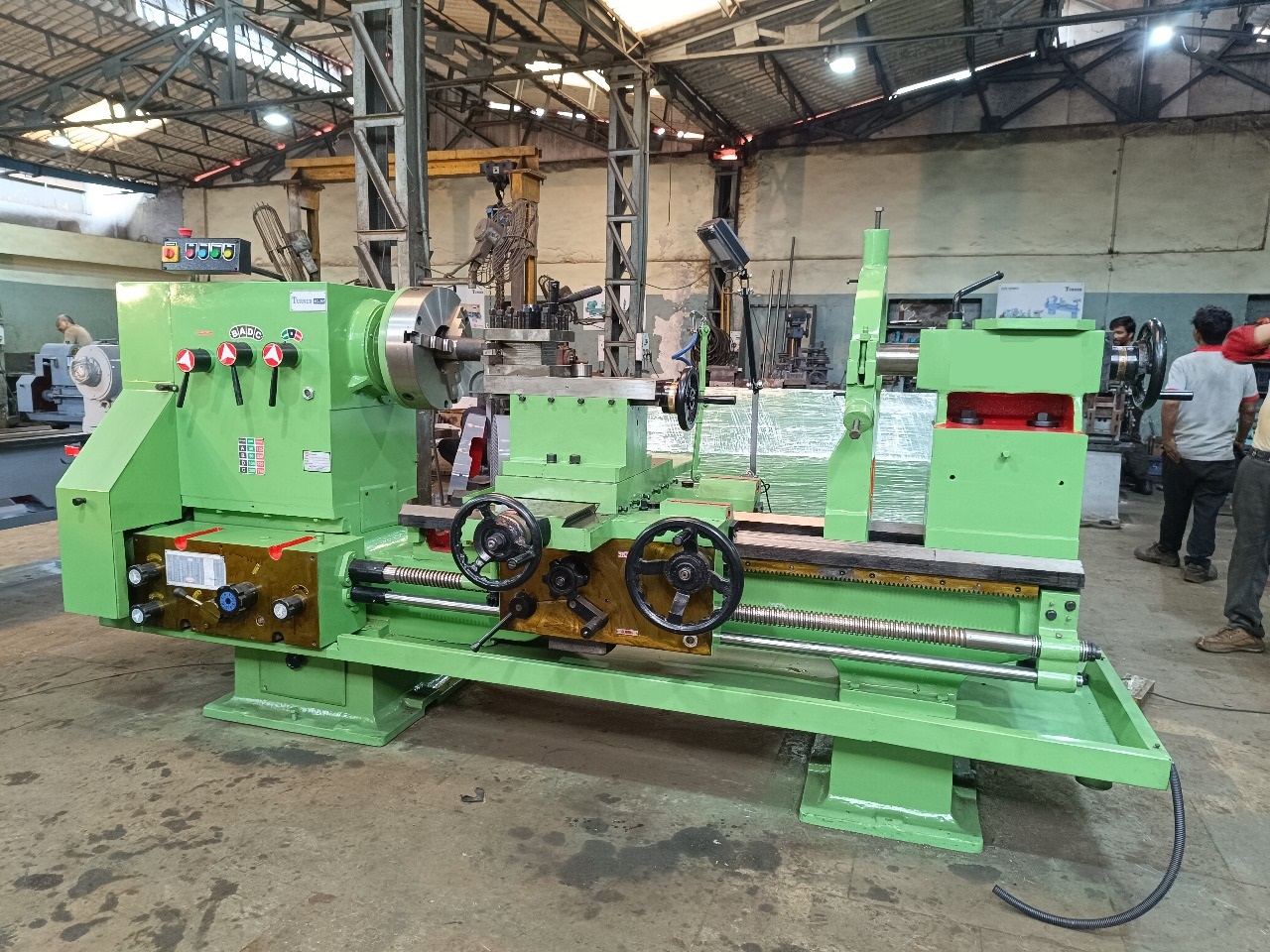

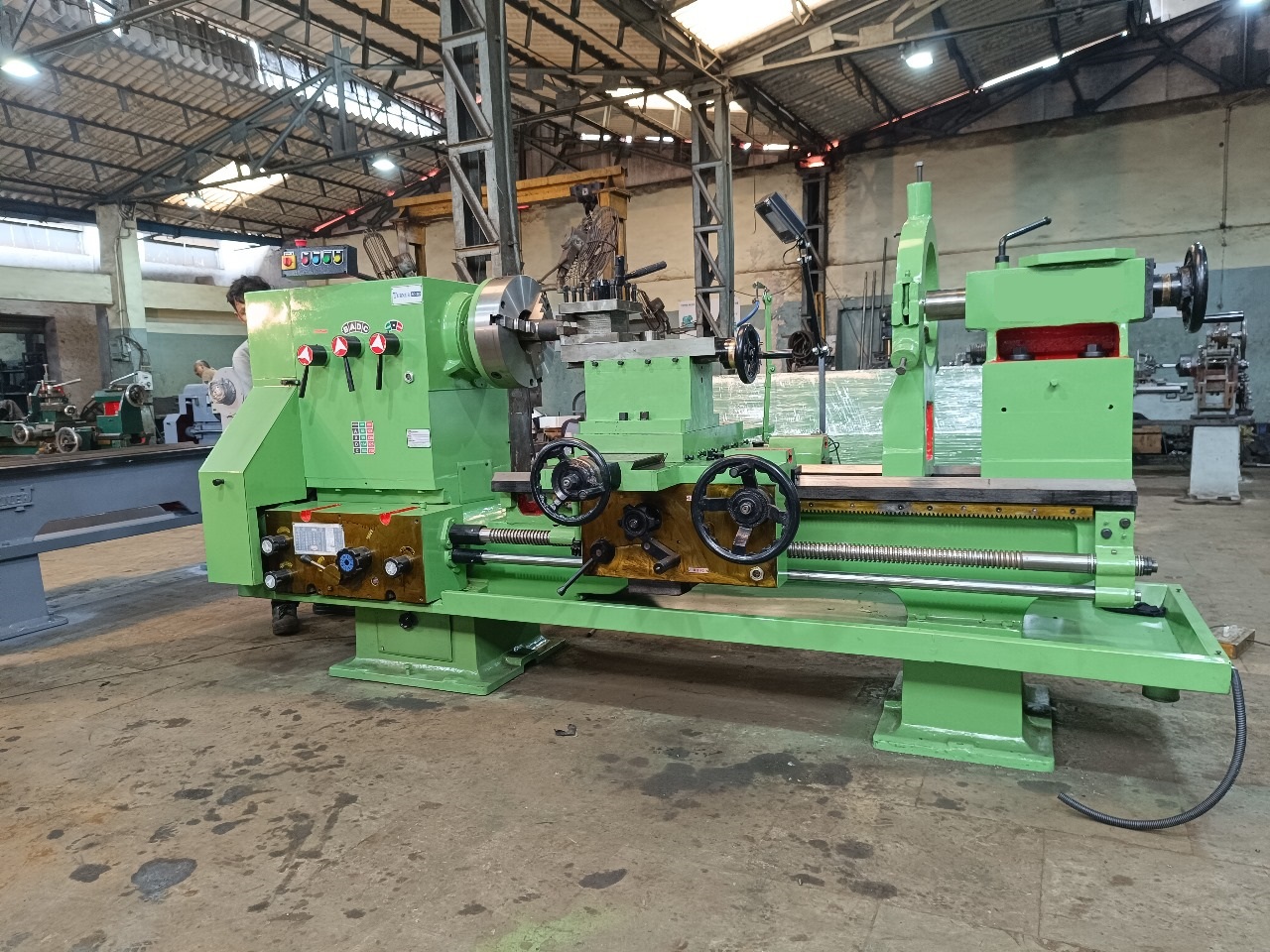

Light/Medium Duty All Gear Lathe

6 1/2 ft

8 ft

10 1/2 ft

12ft

14ft

and vibration-free operation.

bed for superior accuracy.

motor and gearbox.

Technical Specifications

Model	6 1/2 ft	8 ft	10 1/2 ft	12ft	14ft
Bed Length	6 1/2 ft	8 ft	10 1/2 ft	12ft	14ft
Width of bed	375mm	450mm	500mm	550mm	600mm
Height of center	300mm	400mm	450mm	500mm	550mm
Swing over bed	600mm	800mm	900mm	1000mm	1100mm
Swing over cross slide	325mm	530mm	610mm	660mm	710mm
Swing in gap	865mm	1200mm	1300mm	1350mm	1500mm
Admit between centers	1000mm	1500mm	2000mm	2200mm	2500mm
No's of spindle speeds	8	9	8	8	8
RPM Range	30-720	30-720	25-475	25-475	25-475
Spindle Hollow	65mm	90mm	105mm	103mm	103mm
Metric Threads	1-14mm	1-14mm	1-14mm	1-14mm	1-14mm
With Worth Threads TPI	2-30TPI	2-30TPI	2-30TPI	2-30TPI	2-30TPI
D.P. Threads	6-80DP	6-80DP	6-80DP	6-80DP	6-80DP
No of Feeds	30	30	30	30	30
Range of Long Feed	0.2 to 3.0mm	0.2 to 3.0mm	0.2 to 3.0mm	0.2 to 3.0mm	0.2 to 3.0mm
Range of Transverse feed	0.033 to 0.50	0.033 to 0.50	0.033 to 0.50	0.033 to 0.50	0.033 to 0.50
Electric motor Hp/Rpm	3*1440	5*1440	7.5*1440	7.5*1440	10*1440

*Specifications are subject to changed without prior notice.
