Lathe Machines

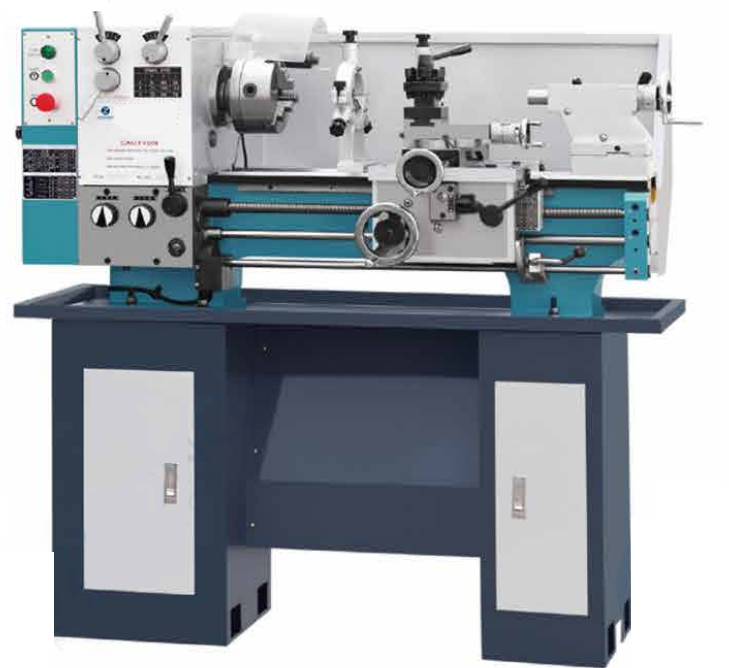

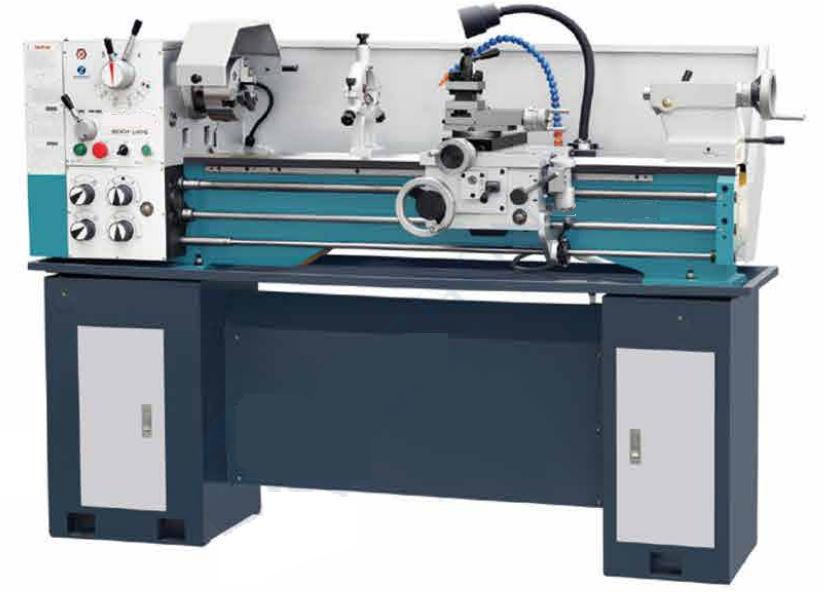

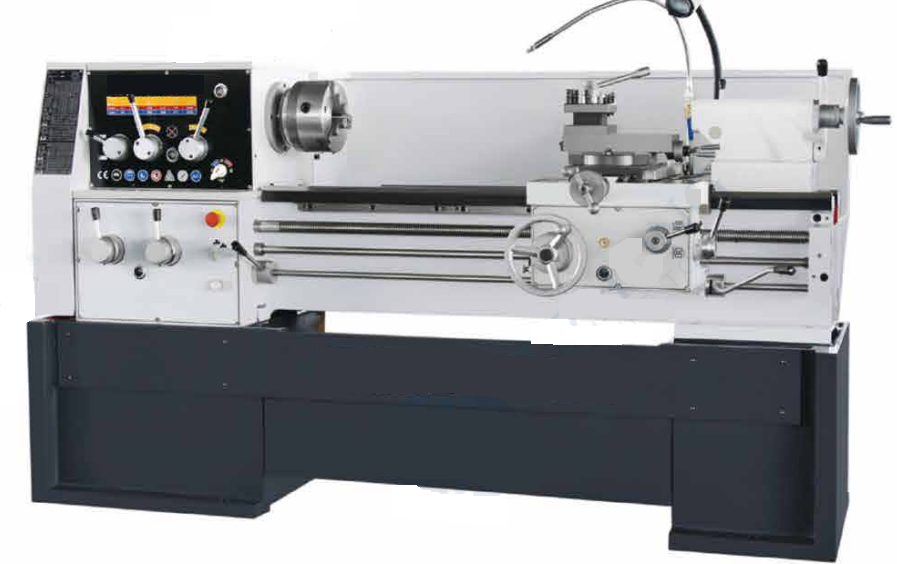

High Speed All Gear Light Lathe Machine

CZ1224G

CZ1237G

CZ1324G

CZ1337G

and vibration-free operation.

bed for superior accuracy.

motor and gearbox.

Technical Specifications

Model	CZ1224G	CZ1237G	CZ1324G	CZ1337G
Swing over bed	305 mm	305 mm	330 mm	330 mm
Swing over cross slide	173 mm	173 mm	195 mm	215 mm
Swing over gap	440 mm	440 mm	465 mm	485 mm
Distance between centers	530 mm	940 mm	530 mm	940 mm
Spindle bore	38 mm	38 mm	38 mm	38 mm
Spindle bore taper	MT5	MT5	MT5	MT5
Spindle speed steps	9	9	9	9
Spindle speed range	64-1500 rpm	64-1500 rpm	64-1500 rpm	64-1500 rpm
Cross slide travel	150 mm	150 mm	150 mm	150 mm
Top tool post travel	85 mm	85 mm	85 mm	85 mm
Feeds range	0.051-0.303 mm/r	0.051-0.303 mm/r	0.051-0.303 mm/r	0.051-0.303 mm/r
Kinds of metric threads	11	11	11	11
Range of metric threads	0.5-3.5 mm	0.5-3.5 mm	0.5-3.5 mm	0.5-3.5 mm
Kinds of inch threads	14	14	14	14
Range of inch threads	7 1/2-48 T.P.I	7 1/2-48 T.P.I	7 1/2-48 T.P.I	7 1/2-48 T.P.I
Tailstock quill diameter	32 mm	32 mm	32 mm	32 mm
Tailstock quill taper	MT3	MT3	MT3	MT3
Tailstock quill travel	95 mm	95 mm	95 mm	95 mm
Main motor power	1.1 kw	1.1 kw	1.1 kw	1.1 kw
Coolant motor power	0.04 kw	0.04 kw	0.04 kw	0.04 kw
Machine weight	495 kg	515 kg	505 kg	525 kg
Overall dimension	14207501460 mm	17807501460 mm	14207501460 mm	19807501480 mm

*Specifications are subject to changed without prior notice.
