Rigid column and base
construction for maximum stability.
Powerful motor for high-speed drilling operations.
Precision spindle with pre-loaded bearings.
Technical Specifications
| Model | 25 MM | 32 MM | 40 MM | 50 MM |
|---|---|---|---|---|
| Drilling Capacity in Steel | 25 MM | 32 MM | 40 MM | 50 MM |
| Drilling Capacity in Casting | 35 MM | 35 MM | 60 MM | 55 MM |
| Tapping | 24" | 24" | 24" | 25 M |
| Maximum Distance from Spindle to Column | 10" | 10" | 36" | 48" |
| Drilling Feed from Spindle to Column | 12" | 16" | 12" | 18" |
| Diameter of Column | 5.1/2" | 7" | 9" | 10" |
| No. of Spindle Speeds | 4 + 4 = 8 | 3 + 3 = 6 | 3 + 3 = 6 | 3 + 3 = 6 |
| Range of Spindle Speeds | 80-700 RPM | 80-700 RPM | 50-76 RPM | 40-750RPM |
| Working Surface of Base Plate | 9" | 11" | 12" | 15" |
| Travel of Spindle | 6" | 8" | 9" | 12" |
| Spindle Morse Taper No. | 3 | 4 | 5 | 5 |
| Vertical Adjustment of Arm | 15" | 18" | 21" | 24" |
| Over All Height | 60" | 70" | 80" | 90" |
| Arm Tilt Any Angle | 90° | 90° | 90° | 90° |
| Floor Space Required | 36" * 21" | 44" * 25" | 55" * 30" | 61" * 32" |
| Electrial Motor Required | 1 H.P. | 2 H.P. | 3 H.P. | 5 H.P. |
*Specifications are subject to changed without prior notice.
Applications
- Drilling holes of various sizes in metal workpieces.
- Reaming and counterboring for precision hole finishing.
- Tapping operations for threaded holes.
- Ideal for fabrication shops, tool rooms, and maintenance departments.
- Suitable for cast iron, steel, and alloy materials.
Features
- Rigid column and base construction for maximum stability.
- Powerful motor for high-speed drilling operations.
- Precision spindle with pre-loaded bearings.
- Adjustable table height for versatile workpiece positioning.
- Smooth rack and pinion column movement.
- Built-in coolant system for extended tool life.

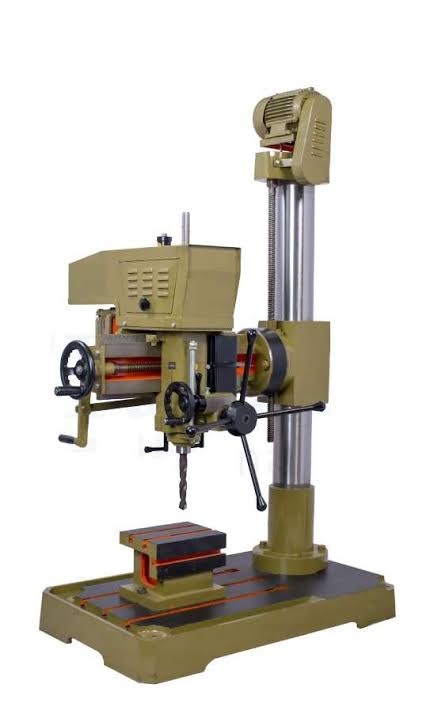

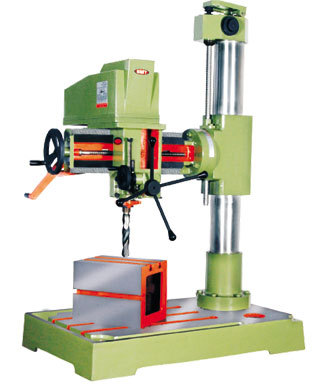

Photo Gallery
