Drilling Machines

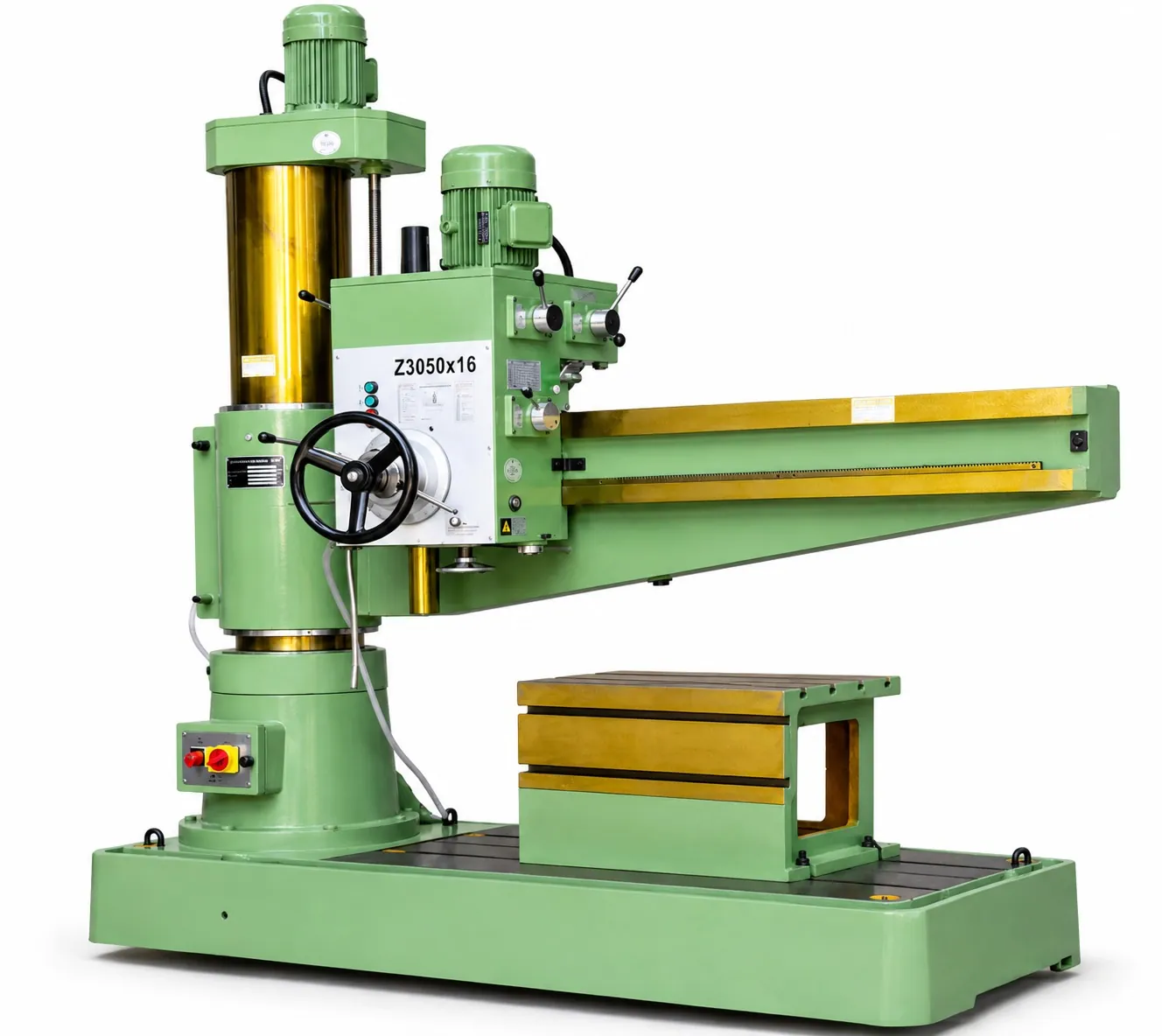

All Gear Radial Drill
Rigid column and base
construction for maximum stability.
Powerful motor for high-speed drilling operations.
Precision spindle with pre-loaded bearings.
Technical Specifications
| Model | 40MM Model 1 | 40MM Model 2 | 50MM Model 1 | 50MM Model 2 | 65MM | 75MM | 85MM |
|---|---|---|---|---|---|---|---|
| Drilling Capacity in Steel | 40 MM | 40 MM | 50 MM | 50 MM | 65 MM | 75 MM | 85 MM |
| Drilling Capacity in Casting | 50 MM | 50 MM | 60 MM | 60 MM | 75 MM | 85 MM | 95 MM |
| Drilling Depth | 180 MM | 180 MM | 225 MM | 250 MM | 325 MM | 355 MM | 400 MM |
| Taper Spindle Nose Socket | MT-4 | MT-4 | MT-5 | MT-5 | MT-5 | MT-6 | MT-6 |
| No. of Spindle Speeds | 6 | 12 | 9 | 12 | 12 | 12 | 12 |
| RPM Range | 55-665 | 56-1000 | 45-750 | 45-1000 | 18-810 | 18-810 | 16-1250 |
| No. of Spindle Feed/Range | 3 | 3 | 3 | 6 | 6 | 6 | 6 |
| Drill Power | 1.5 KW (2 H.P.) | 2.2 KW (3H.P.) | 2.2 KW (3H.P.) | 3.7 KW (5H.P.) | 3.7 KW (5H.P.) | 5.5 KW (7.5H.P.) | 7.5 KW (10 H.P.) |
| Drilling Radius Max. | 1050 MM | 1050 MM | 1200 MM | 1500 MM | 1700 MM | 1900 MM | 2200 MM |
| Drilling Radius Min. | 375 MM | 375 MM | 450 MM | 500 MM | 500 MM | 600 MM | 650 MM |
| Drilling Head Traverse | 675 MM | 675 MM | 650 MM | 850 MM | 1200 MM | 1300 MM | 1550 MM |
| Distance Base Plate to Spindle Max. | 1000 MM | 1000 MM | 1300 MM | 1300 MM | 1500 MM | 1750 MM | 1800 MM |
| Distance Base Plate to Spindle Min. | 225 MM | 225 MM | 225 MM | 325 MM | 300 MM | 400 MM | 550 MM |
| Diameter of Column Sleeve | 255 MM | 255 MM | 310 MM | 310 MM | 355 MM | 405 MM | 450 MM |
| Working Surface of Base Plate | 900 x 680 | 900 x 680 | 920 x 830 | 1120 x 830 | 1500 x 1020 | 1850 x 1160 | 2130 x 1300 |
| Arm Elevator Motor | 0.75 KW(1H.P.) | 0.75 KW(1H.P.) | 1.5 KW (2H.P.) | 2.2 KW (2H.P.) | 2.2 KW (3H.P.) | 3.7 KW (5H.P.) | 3.7 KW (5H.P.) |
| Standard Box Table | 400 x 350 x 350 | 550 x 420 x 420 | 550 x 420 x 420 | 550 x 420 x 420 | 600 x 500 x 500 | 600 x 500 x 500 | 1000 x 750x500 |
*Specifications are subject to changed without prior notice.
Applications
- Drilling holes of various sizes in metal workpieces.
- Reaming and counterboring for precision hole finishing.
- Tapping operations for threaded holes.
- Ideal for fabrication shops, tool rooms, and maintenance departments.
- Suitable for cast iron, steel, and alloy materials.
Features
- Rigid column and base construction for maximum stability.
- Powerful motor for high-speed drilling operations.
- Precision spindle with pre-loaded bearings.
- Adjustable table height for versatile workpiece positioning.
- Smooth rack and pinion column movement.
- Built-in coolant system for extended tool life.
