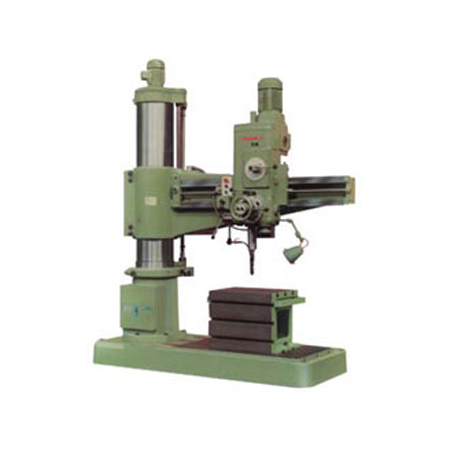

Radial Drill Machine
Radial drill machines with auto feed and fine feed options for precision drilling applications.
Rigid column and base
construction for maximum stability.
Powerful motor for high-speed drilling operations.
Precision spindle with pre-loaded bearings.
Technical Specifications
| Model | Auto Feed Models | Fine Feed Models |
|---|---|---|
| Drilling Capacity | 40 mm (MS), 45 mm (CI) | 25 to 38 mm |
| Spindle Taper | MT-4 | MT-3 to MT-4 |
| Spindle Speed Range | 70 to 2600 RPM | 100 to 2880 RPM |
| Drilling Head Motor | 1.5 HP | 1.0 to 1.5 HP |
| Spindle Travel | 250 mm | 200 to 250 mm |
*Specifications are subject to changed without prior notice.
Applications
- Drilling holes of various sizes in metal workpieces.
- Reaming and counterboring for precision hole finishing.
- Tapping operations for threaded holes.
- Ideal for fabrication shops, tool rooms, and maintenance departments.
- Suitable for cast iron, steel, and alloy materials.
Features
- Rigid column and base construction for maximum stability.
- Powerful motor for high-speed drilling operations.
- Precision spindle with pre-loaded bearings.
- Adjustable table height for versatile workpiece positioning.
- Smooth rack and pinion column movement.
- Built-in coolant system for extended tool life.
