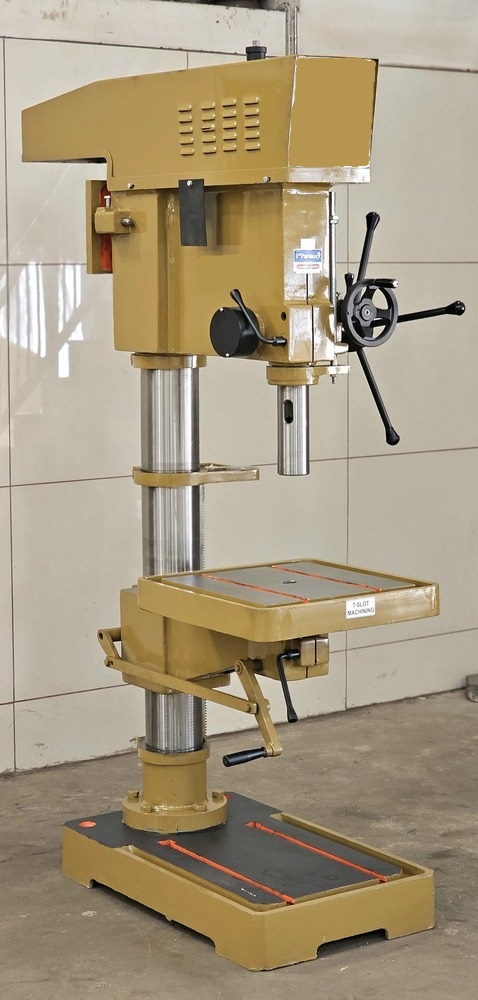

Rigid column and base
construction for maximum stability.
Powerful motor for high-speed drilling operations.
Precision spindle with pre-loaded bearings.
Technical Specifications
| Model | 10 MM | 20 MM | 25 MM | 32 MM | 40 MM |
|---|---|---|---|---|---|
| Drilling Capacity | 10 MM | 20 MM | 25 MM | 32 MM | 40 MM |
| Spindle Taper | T-2 | MT-2 | MT-3 | MT-3 | MT-4 |
| Spindle Stroke | 80 mm | 110 mm | 140 mm | 160 mm | 250 mm |
| No. of Spindle Speed | 4 | 8 | 8 | 8 | 8 |
| Range | 50-2800 | 50-2800 | 100-2650 | 80-2600 | 80-2600 |
| Type of Feed | - | - | Fine Feed | Fine Feed | Fine Feed |
| Diameter of column | 48 mm | 75 mm | 90 mm | 108 mm | 110 mm |
| Distance from Spindle to Column | 160 mm | 206 mm | 206 mm | 260 mm | 321 mm |
| Max. Distance from Spindle to Table | 460 mm | 605 mm | 560 mm | 670 mm | 610 mm |
| Distance from spindle to base | 580 mm | 905 mm | 950 mm | 1120 mm | 970 mm |
| Table Size | 250 x 250 mm | 260 x 260 mm | 330 x 330 mm | 355 x 455 mm | 425 x 425 mm |
| Base Working Area | 225 x 190 mm | 280 x 330 mm | 300 x 304 mm | 490 x 700 mm | 500 x 450 mm |
| Motor | 0.5 H.P. | 1 H.P. | 1.5 H.P. | 1.5 H.P. | 1.5 H.P. |
*Specifications are subject to changed without prior notice.
Applications
- Drilling holes of various sizes in metal workpieces.
- Reaming and counterboring for precision hole finishing.
- Tapping operations for threaded holes.
- Ideal for fabrication shops, tool rooms, and maintenance departments.
- Suitable for cast iron, steel, and alloy materials.
Features
- Rigid column and base construction for maximum stability.
- Powerful motor for high-speed drilling operations.
- Precision spindle with pre-loaded bearings.
- Adjustable table height for versatile workpiece positioning.
- Smooth rack and pinion column movement.
- Built-in coolant system for extended tool life.
Photo Gallery
