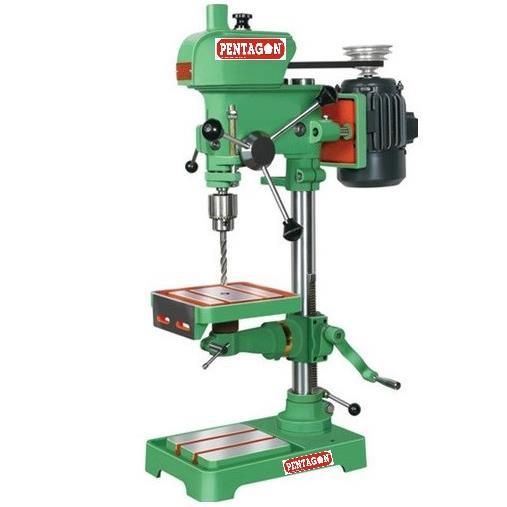

Pillar Drill Machine
Pillar drill machines in all geared and belt driven variants for precision drilling.
Rigid column and base
construction for maximum stability.
Powerful motor for high-speed drilling operations.
Precision spindle with pre-loaded bearings.
Technical Specifications
| Model | All Geared Pillar Drills | Belt Driven Pillar Drills |
|---|---|---|
| Drilling Capacity | 30 to 50 mm | 13 to 40 mm |
| Spindle Taper | MT-3 to MT-5 | Solid, MT-2 to MT-4 |
| Spindle Speed Range | 42 to 2600 RPM | 65 to 5650 RPM |
| Motor Power | 0.85 to 2.8 kW | 0.5 to 1.5 HP |
| Table Size | 500x440 to 550x470 mm | 210x210 to 455x455 mm |
*Specifications are subject to changed without prior notice.
Applications
- Drilling holes of various sizes in metal workpieces.
- Reaming and counterboring for precision hole finishing.
- Tapping operations for threaded holes.
- Ideal for fabrication shops, tool rooms, and maintenance departments.
- Suitable for cast iron, steel, and alloy materials.
Features
- Rigid column and base construction for maximum stability.
- Powerful motor for high-speed drilling operations.
- Precision spindle with pre-loaded bearings.
- Adjustable table height for versatile workpiece positioning.
- Smooth rack and pinion column movement.
- Built-in coolant system for extended tool life.
