Boring Machines

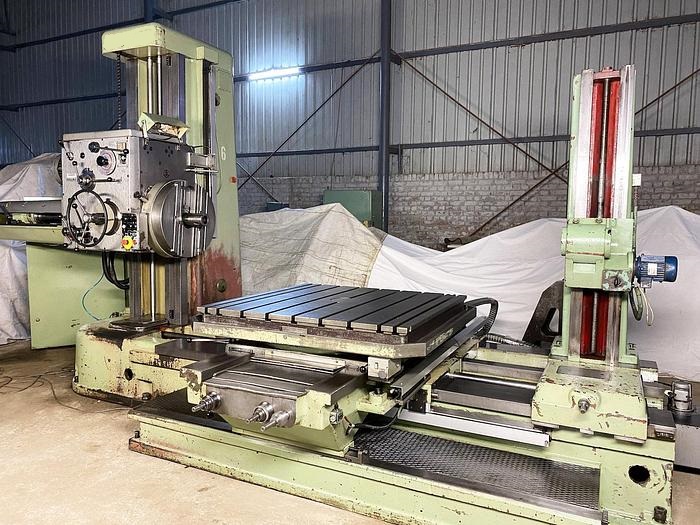

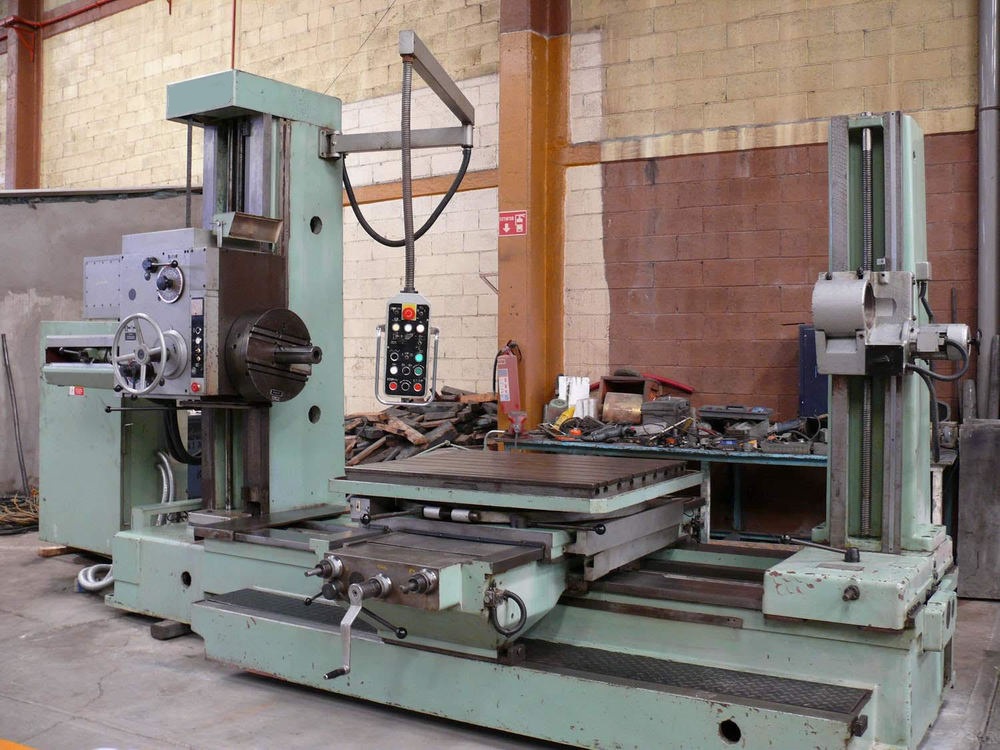

Horizontal Boring Machine

65 MM

80 MM

100 MM

110 MM

125 MM

150 MM

taper for tool holding.

Technical Specifications

Model	65 MM	80 MM	100 MM	110 MM	125 MM	150 MM
Head Diameter	65 mm	80 mm	100 mm	110 mm	125 mm	150 mm
Morse Taper Number	4	5	6	6	6	Metric 80
Max. Longitudinal Movement	410 mm	510 mm	510 mm	510 mm	600 mm	800 mm
Number of Spindle Speeds	9	9	9	9	9	9
Range of Spindle Speeds	20 to 300 RPM	15 to 300 RPM	15 to 300 RPM	15 to 250 RPM	15 to 250 RPM	15 to 250 RPM
Longitudinal Work Spindle Feeds	9	9	9	9	9	9
Max. Height of Spindle Axis from Table	800 mm	925 mm	1000 mm	1100 mm	1250 mm	1500 mm
Min. Height of Spindle Axis from Table	20 mm	25 mm	35 mm	35 mm	35 mm	50 mm
Dimensions of Rotary Table	880x1050 mm	900x1125 mm	1030x1375 mm	1100x1450 mm	1125x1675 mm	1500x2000 mm
Longitudinal Table Traverse	1500 mm	1625 mm	1775 mm	1925 mm	2050 mm	2225 mm
Long. Table Traverse Feeds	10	10	10	10	15	15
Transversal Table Travel Feeds	10	10	10	10	15	15
Vertical Head Stock Travel Feeds	4	4	4	15	15	15
Rotary Table Automatic Feeds	10	10	10	15	15	15
Max. Cross Movement	910 mm	1000 mm	1100 mm	1300 mm	1550 mm	2000 mm
Distance Between Bearing and Facing Head	2150 mm	2400 mm	2690 mm	2800 mm	2950 mm	3400 mm
Facing Head Diameter	450 mm	505 mm	555 mm	600 mm	650 mm	700 mm
Motor Required	3 & 2 H.P.	5 & 2 H.P.	7.5 & 2 H.P.	10 & 3 H.P.	12.5 & 5H.P.	15 & 5 H.P.
Weight	7500 kgs	8500 kgs	10000 kgs	11500 kgs	16500 kgs	20000 kgs

*Specifications are subject to changed without prior notice.
